Specification
Voltage rating: 250V AC
Current rating: 3A AC/DC
Withstanding Voltage: 1000V / minute
Insulation resistance: 1000MΩ Min
Temperature range: -25℃ to +85℃
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-1128-XX |
JS-1129(180° ) , JS-1129R(90° ) |
JS-1128-T,JS-1128-PBT |
| Description |
Description |
Description |
Poles: 02-15
Material: Nylon 66 UL 94V-0
Q'ty: 1,000 pcs/Bag |
Poles: 02-15
Material: Contact : Brass, Tin plated
Base : Nylon 66 UL94V-0Q'ty: 1,000 pcs/Bag |

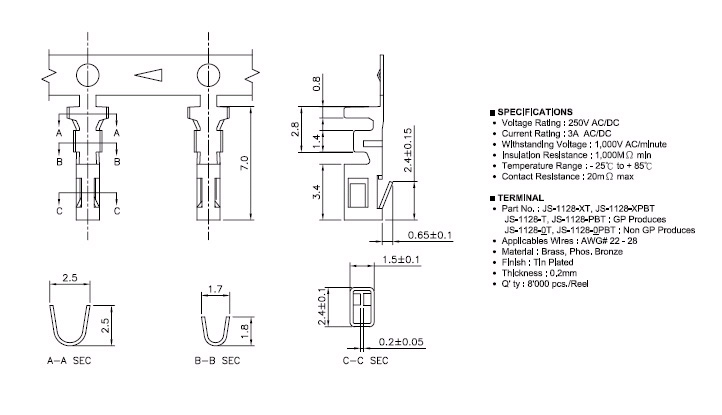

Applicable wires: AWG# 22~28
Material: ,Brass,Phos.Bronze
Finish:Tin plated
Thickness:0.2 mm
Q'ty: 8,000 pcs/Reel |
|
