Specification
Poles: 40 , 50
Voltage rating: 250V AC
Current rating: 3A AC/DC
Withstanding Voltage: 1000V / minute
Insulation resistance: 1000MΩ Min
Temperature range: -25℃ to +85℃
Contact resistance: 20MΩ MAX
| Type |
Type |
Type |
| Housing |
Wafer |

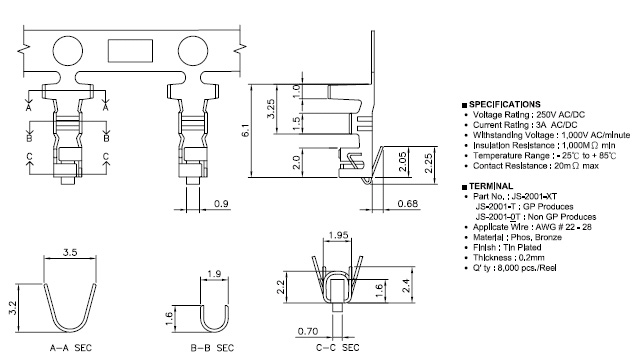

Terminal |
| Part No. |
Part No. |
Part No. |
| JS-2001-XX |
JS-1001-XX |
JS-2001-TG, JS-2001-TB |
| Description |
Description |
Description |
Poles: 02-20
Material: Nylon 66 UL 94V-0
Q'ty: 1,000 pcs/Bag |
Poles: 02-20
Material: Contact : Brass, Tin plated
Base : Nylon 66 UL94V-0Q'ty: 1,000 pcs/Bag |
Applicable wires: AWG# 22 ~ 28
Material: Phos. Bronze,Brass
Finish:Tin plated
Thickness:0.2 mm
Q'ty: 8,000 pcs/Reel |
|
