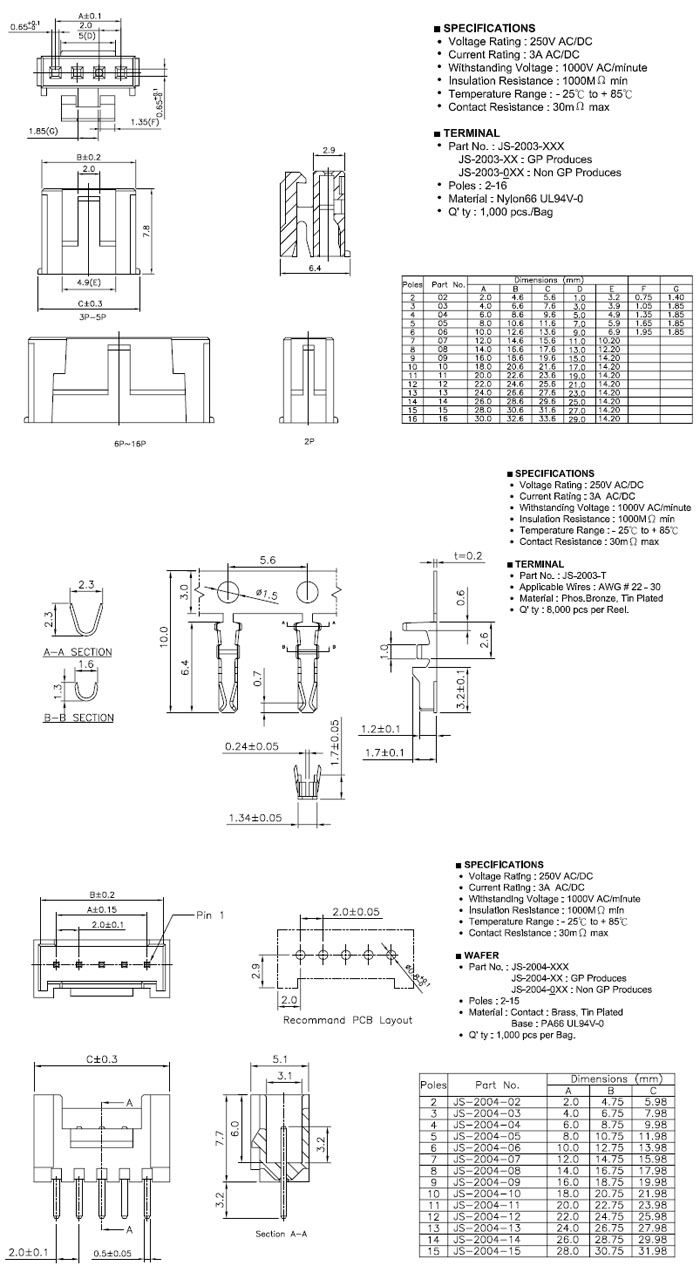

JS-2003,JS-2004,JS-2004R series  2.0mm pitch Disconnectable crimp style connectors


More Specification >>

  Specification
Poles: 2-15
Voltage rating: 250V AC,DC
Current rating: 3A AC , DC
Withstanding Voltage: 1000V AC/minute
Insulation resistance: 1000 M min
Temperature range: -25°C - +85°C
(Including temperature rise in app
Contact resistance: Initial Vaule / 20m max.
After environmental testing/3Initial Vaule / 20m max.
After environmental testing/20m


Type Type Type
Housing wafer Terminal
Part No. Part No. Part No.
 JS-2003 JS-2004(180° ) , JS-2004(90° ) JS-2003-T
Description Description Description

Poles: 2-15
Material: Nylon 66 UL 94V-0
Q'ty: 1000 pcs by bag

Poles: 2-15
Material: Contact : Brass, Tin Plated
Base : Nylon 66 UL94V-0
Q'ty: 1000 pcs by bag

Applicable wires: AWG #22 ~ 30
Material: Phos. Bronze
Finish: Tin plated
Thickness: 0.25 mm
Q'ty: 8,000 pcs/Reel
