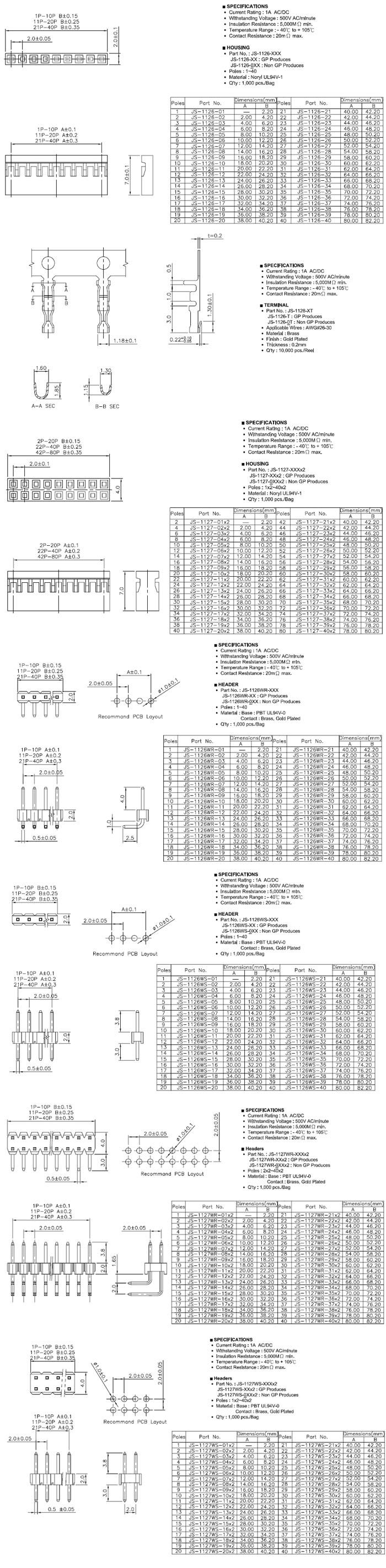

JS-1126,JS-1126WR,JS-1126WS  Center mini latch S/R,D/R housing & headers (Pitch)： 2.00mm


More Specification >>

  Specification
Current rating: 1A AC/DC
Withstanding Voltage: JS-1126-T/JS-1127:500MΩ min.
JS-1126/JS-1126WR/JS-1126WS/JS1127WR/JS1127WS:500 V AC/minute
Insulation resistance: 5000 MΩ min
Temperature range: -40℃ to +105℃
Contact resistance: 20mΩ max.


Type Type Type
Housing Wafer Terminal
Part No. Part No. Part No.
 JS-1126/JS-1127 JS-1126WR/JS-1126WS/JS-1127WR/JS-1127WS JS-1126-T
Description Description Description

Poles: 1-40
Material: Noryl UL 94V-1
Q'ty: 1000 pcs/bag


Poles: 1-40
Material: Contact : Brass, Gold Plated
Base : PBT UL94V-0
Q'ty: 1,000 pcs/Bag

Applicable wires: AWG #26 ~ 30
Material: Brass
Finish: Gold plated
Thickness: 0.2 mm
Q'ty: 10,000 pcs/reel
