Specification
Voltage rating: 125V AC,DC
Current rating: 1A AC,DC
Withstanding Voltage: 250V AC/minute
Insulation resistance: 100 M min
Temperature range: -25°C ~ +85°C
(Including temperature rise in applying electronical current)
Contact resistance: Initial Vaule / 20m max.
After environmental testing/20m max.

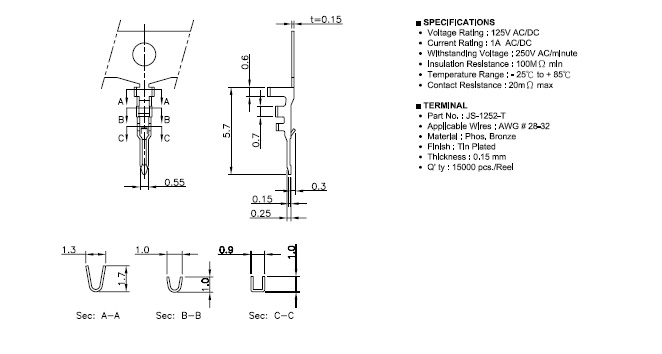

| Type |
Type |
| Housing |
Terminal |
| Part No. |
Part No. |
| JS-1252 |
JS-1252-T |
| Description |
Description |
|
Poles: 2 - 15
Material: Nylon 66 UL 94V-0
Q'ty: 1,000 pcs/bag |
AApplicable wires: AWG #28 - 32
Material: Phos. Bronze
Finish: Tin plated
Thickness: 0.15 mm
Q'ty: 15,000 pcs/reel | |
|
