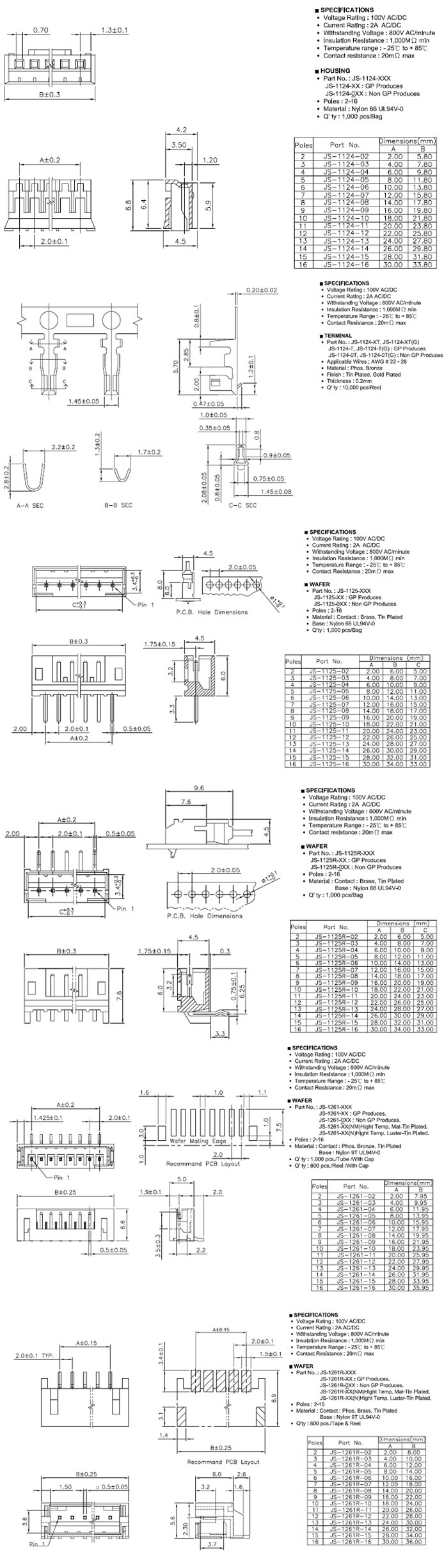

JS-1124,JS-1125,JS-1125R,JS-1261R series  Disconnectable crimp style connectors (Pitch)： 2.00mm


More Specification >>

  Specification
Voltage rating: 100V AC/DC
Current rating: 2A AC/DC
Withstanding Voltage: 800V AC/minute
Insulation resistance: 1000 M min
Temperature range: -25°C - +85°C
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max.


Type Type Type
Housing Wafer Terminal
Part No. Part No. Part No.
JS-1124 JS-1125/JS-1125R/JS-1261/JS-1261R JS-1124-T, JS-1124-T(G)
Description Description Description

Poles: 02 - 16
Material: Nylon 66 UL 94V-0
Q'ty: 1000 pcs/bag

Poles: 2 – 16 (JS-1125,JS-1125R,JS-1261)
2 – 15 (JS-1261R)
Material: JS-1125/JS-1125R:Contact : Brass, Tin Plated
Base:Nhlon 66 UL94V-0
JS-1261,JS-1261R - Phos. Bronze, Tin Plated
Base :
JS-1125,JS-1125R - Nylon 66 UL94V-0
JS-1261/JS-1261R:Contact : Phos.Brass,Tin Plated
Base:Nylon 9T UL94V-0
Q'ty: JS-1125,JS-1125R -1,000 pcs/bag
JS-1261- 800/1,000 pcs/tape & reel
JS-1261R - 800 pcs/tape & reel

Applicable wires: AWG #22 ~ 28
Material: Phos . Bronze
Finish: Tin plated, Gold plated
Thickness: 0.2 mm
Q'ty: 10,000 pcs/reel
