JS-1101-T,JS-9001,JS-9001R series  Disconnectable crimp style connectors (Pitch)： 2.00mm

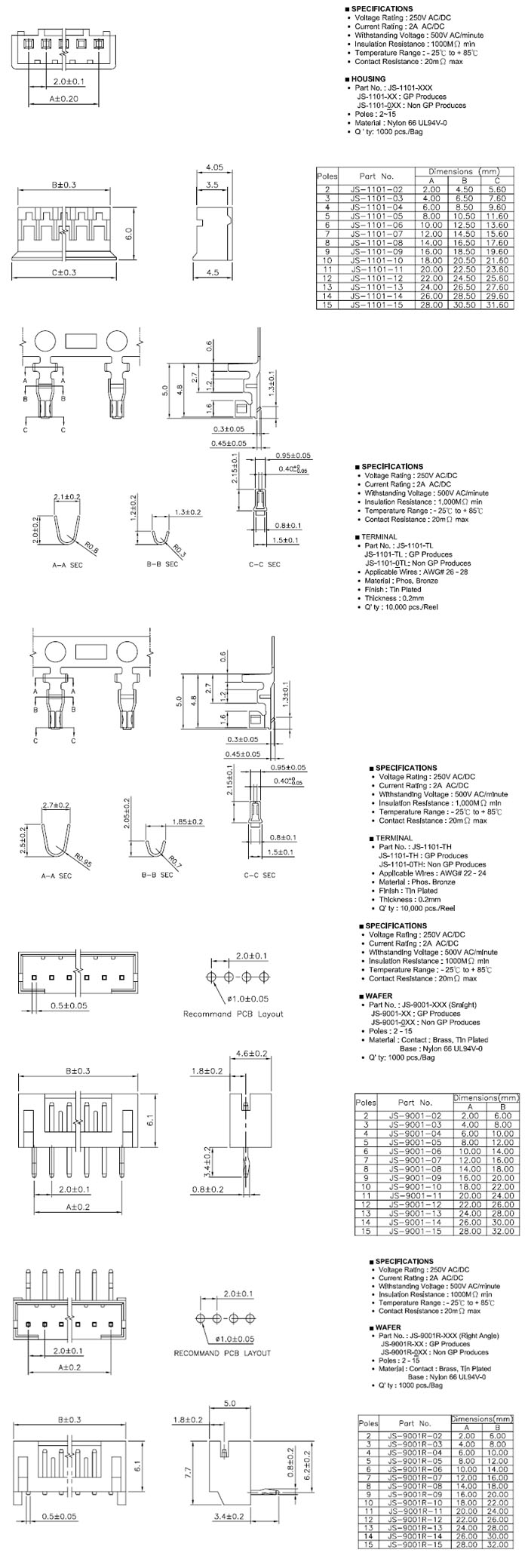

More Specification >>



Specification
Voltage rating: 250V AC,DC
Current rating: 2A AC , DC
Withstanding Voltage: 500V AC/minute
Insulation resistance: 1000 M min
Temperature range: -25°C - +85°C
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max



Type Type Type
Housing Wafer Terminal
Part No. Part No. Part No.
JS-1101 JS-9001 (Straight) JS-1101-TH,JS-1101-TL
Description Description Description

Poles: 2 ~ 15
Material: Nylon 66 UL 94V-0
Q'ty: 1000 pcs/bag

JS-9001R (Right Angle)
Poles: 2 ~ 15
Material: Contact : Brass, Tin Plated
Base : Nylon 66 UL94V-0
Q'ty: 1000 pcs/bag

Applicable wires: AWG# 26 ~ 28(JS-1101-TL)
AWG# 22 ~ 24(JS-1101-TH)
Material: Phos . bronze
Finish: Tin plated
Thickness: 0.2 mm
Q'ty: 10,000 pcs/reel
