Specification
Voltage rating: 250V AC,DC
Current rating: 2A AC , DC
Withstanding Voltage: 800V AC/minute
Insulation resistance: 1000 M min
Temperature range: -25°C ~ +85°C
Contact resistance: 20mΩ max
| Type |
Type |

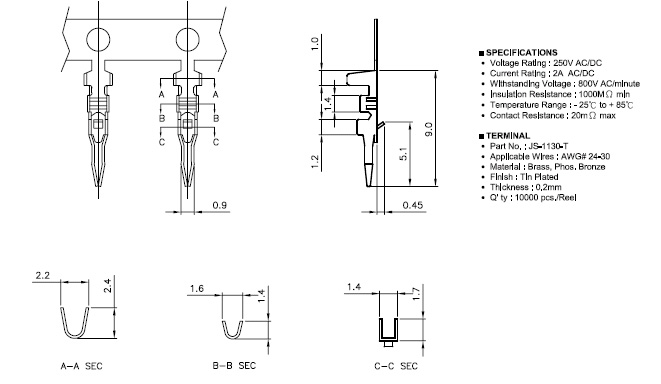

| Housing |
Terminal |
| Part No. |
Part No. |
| JS-1130 (180° ) , JS-1130R(90° ) |
JS-1130-T , JS-1130-TPJS-1130-TP,JS-1130R-TP(Stamping Before Tin Plated) |
| Description |
Description |
|
Poles: 2 - 15
Material: Nylon 66 UL 94V-0
Q'ty: 1000 pcs/bag |
Applicable wires: AWG #24 ~ 30
Material: Brass, Phos bronze
Finish: Tin plated
Thickness: 0.2 mm
Q'ty: 10,000 pcs/reel | |
|
