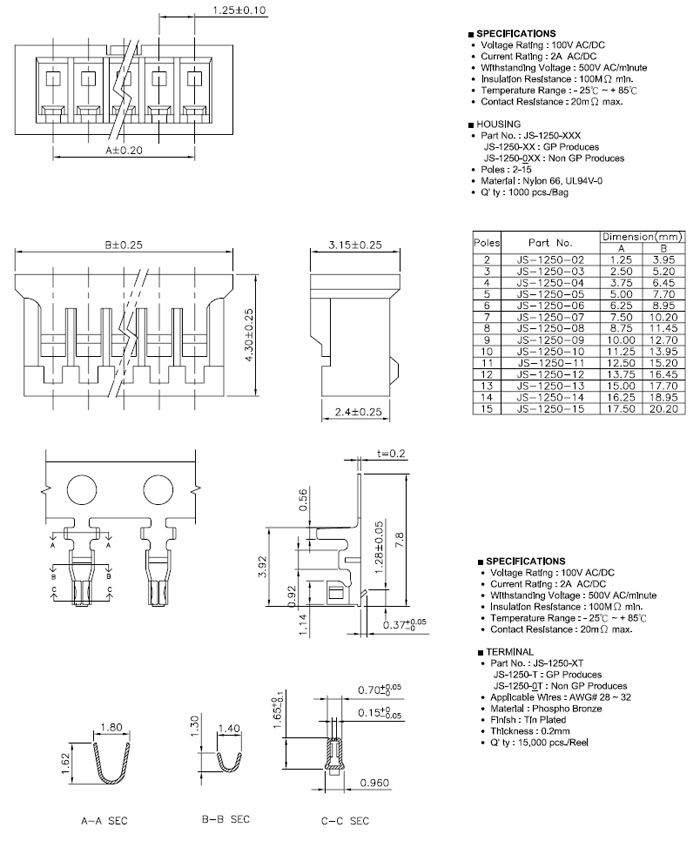

JS-1250,JS-1250-T  Disconnectable crimp style connectors (Pitch)： 1.25mm


More Specification >>

  Specification
Voltage rating: 100V AC,DC
Current rating: 2A AC , DC
Withstanding Voltage: 500V AC/minute
Insulation resistance: 100 MΩ min
Temperature range: -25℃ ~ +85℃
Contact resistance: 20mΩ max.


Type Type
Housing Terminal
Part No. Part No.
JS-1250 JS-1250-T
Description Description

Poles: 2 - 15
Material: Nylon 66 UL94V-0
Q'ty: 1,000 pcs/bag

Applicable wires: AWG# 28 - 32
Material: Phos. Bronze
Finish: Tin Plated
Thickness: 0.15mm
Q'ty: 15,000 pcs/Reel
