Path : Our Products > Connectors > Crimp, Housing, Wafer > Wire to Board Connectors > 1.25mm

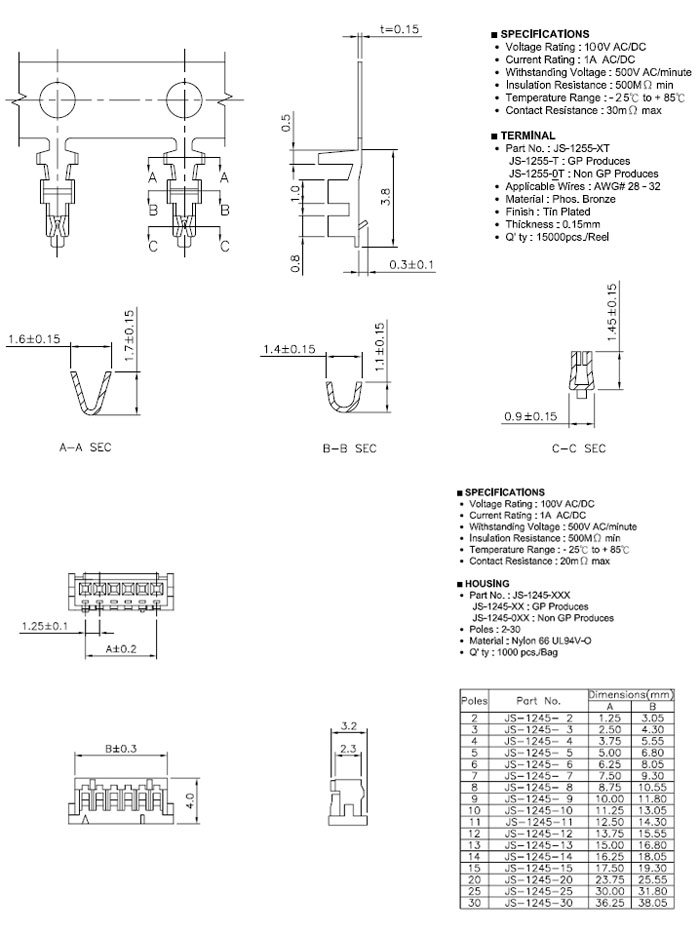

	JS-1245,JS-1255-T series 1.25mm pitch Crimp Style Connectors (SMT type)

View Enlargement

More Specification >>

Specification
Voltage rating: 100V AC/DC
Current rating: 1A AC/DC
Withstanding Voltage: 500V AC/minute
Insulation resistance: 500MΩ min.
Temperature range: - 25℃ to + 85℃
Contact resistance: 20mΩ max

Type	Type
Housing	Terminal
Part No.	Part No.
JS-1245	JS-1255-T
Description	Description
Poles: 2 - 30 Material: Nylon 66 UL94V-0 Q'ty: 1,000 pcs/Bag	Applicable wires: AWG# 28 - 32 Material: Phos. Bronze Finish: Tin Plated Thickness: 0.15mm Q'ty: 15,000 pcs/Reel
