Path : Our Products > Connectors > Crimp, Housing, Wafer > Wire to Board Connectors > 1.25mm

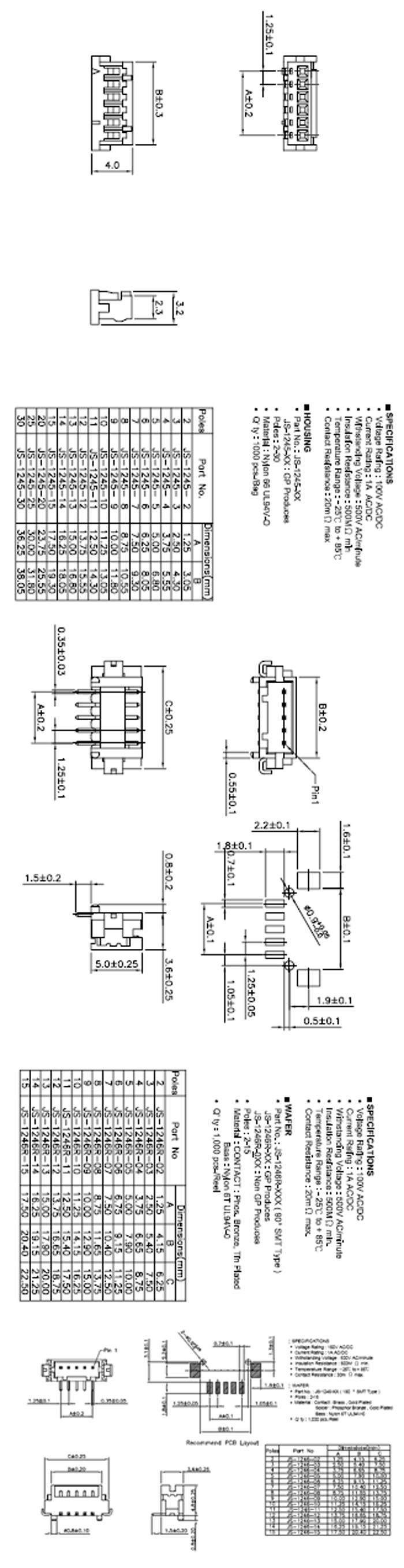

	JS-1245,JS-1246-T,JS-1246R Series 1.25mm pitch Crimp Style Connectors (SMT type)

View Enlargement

More Specification >>

Specification
Poles: 2~30
Voltage rating: 100V AC/ DC
Current rating: 1A AC/DC
Withstanding Voltage: 500V AC/minute
Insulation resistance: 500MΩ min.
Temperature range: - 25℃ to + 85℃
Contact resistance: 20mΩ max.

Type	Type
Housing	wafer
Part No.	Part No.
JS-1245	JS-1246
Description	Description
Poles: 2~30 Material: Nylon 66 UL94V-0 Q'ty: 1,000 pcs ./Bag	Poles: 2~15 Material: Contact : Phos.Bronze, Tin Plated Base : Nylon 6T UL94V-0 Q'ty: 1,000 pcs ./ Reel
