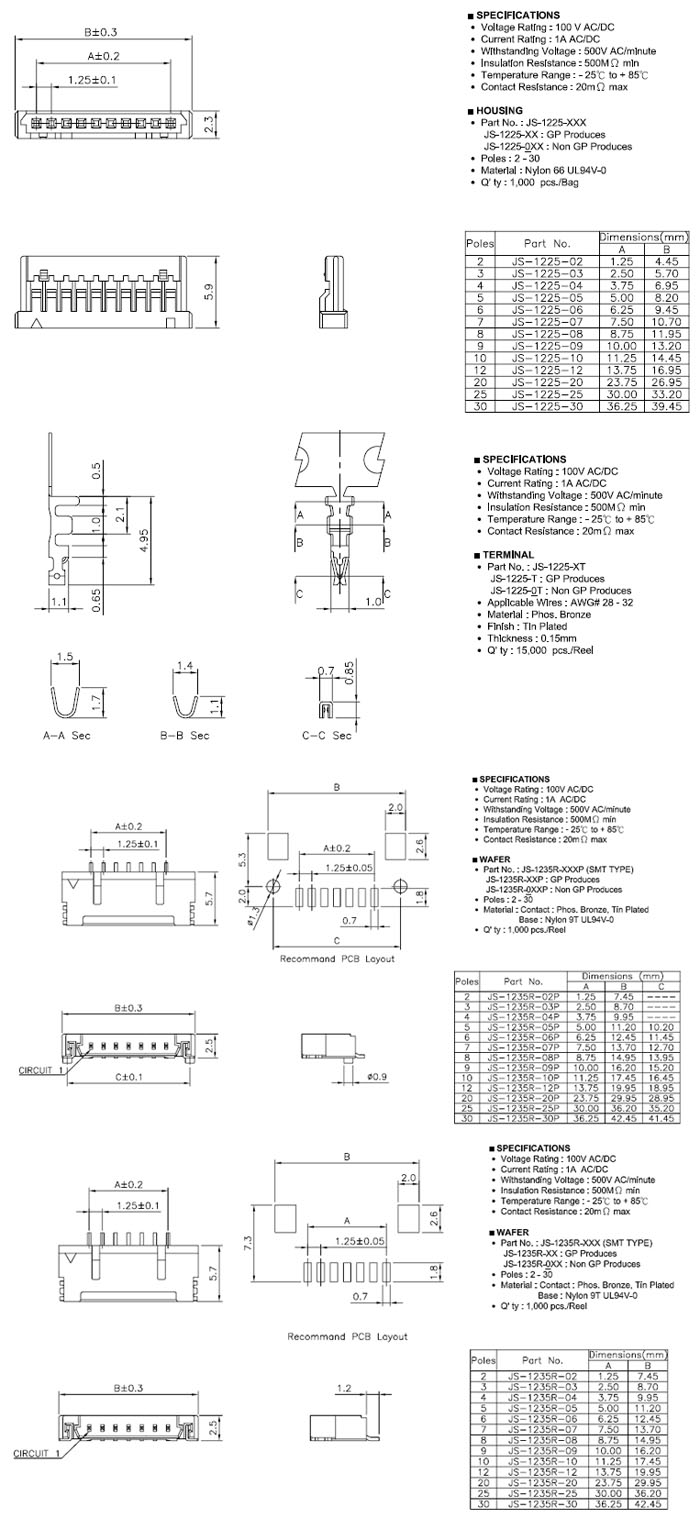

JS-1225,JS-1225-T,JS-1235R Series  1.25mm pitch Crimp Style Connectors (SMT type)


More Specification >>



Specification
Poles: 2-30
Voltage rating: 100V AC/ DC
Current rating: 1A AC/DC
Withstanding Voltage: 500V AC/minute
Insulation resistance: 500MΩ min.
Temperature range: - 25℃ to + 85℃
Contact resistance: 20mΩ max.



Type Type Type
Housing wafer Terminal
Part No.  Part No. Part No.
JS-1225  JS-1235R (Right Angle) JS-1225-T
Description  Description Description

Poles: 2 - 30
Material: Nylon 66 UL94V-0
Q'ty: 1,000 pcs By Bag

Poles: 2 - 30
Material: Contact : Phos.Bronze, Tin Plated
Base : Nylon 9T UL94V-0
Q'ty: 1,000 pcs By Reel


Applicable wires: AWG# 28 - 32
Material: Phos. Bronze
Finish: Tin Plated
Thickness: 0.15mm
Q'ty: 15,000 pcs per Reel
