Specification
Poles: 2-15
Voltage rating: 250V AC/DC
Current rating: 1A AC/DC
Withstanding Voltage: 250V AC/minute
Insulation resistance: 100 mΩ min
Temperature range: -40℃ TO +85℃
Applicable PC board thickness: AWG#28-32
Contact resistance: 20mΩ max.
| Type |
Type |
Type |
| Housing |
wafer |
Terminal |
| Part No. |
Part No. |
Part No. |

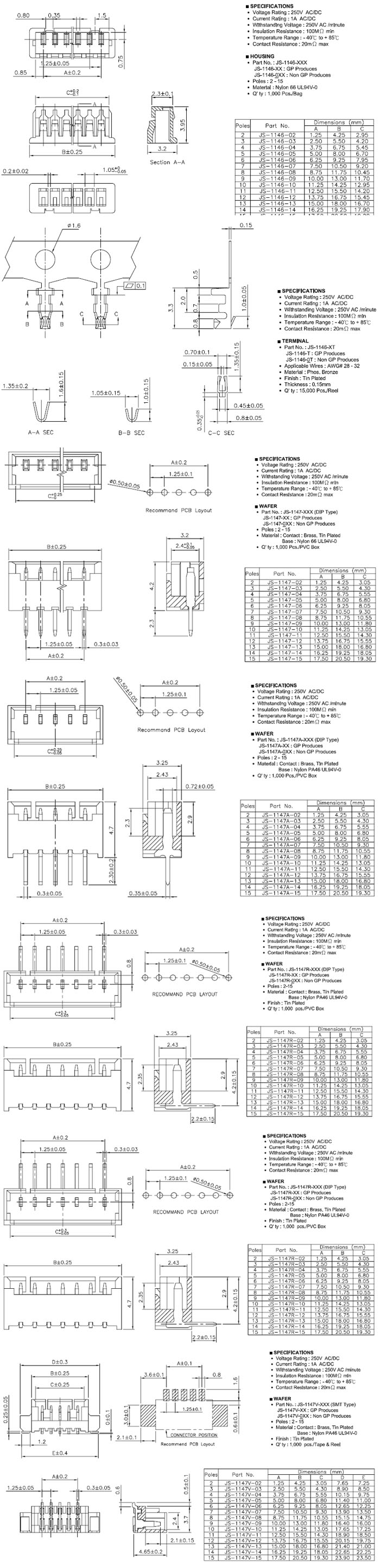

| JS-1146 |
JS-1147,JS-1147A (DIP type, Straight)
JS-1147R (DIP type, Right angle)
JS-1147H (SMT type, Right angle)
JS-1147V (SMT type, Straight) |
JS-1146-T |
| Description |
Description |
Description |
|
Poles: 2 - 15
Material: Nylon 66 UL 94V-0
Q'ty: 1000 pcs/bag |
Poles: 2 -15
Material: Contact : Brass, Tin Plated
Base:
JS-1147 - Nylon 66 UL94V-0
JS-1147A,JS-1147R,JS-1147H,JS-1147V - Nylon PA46 UL94V-0
Q'ty: JS-1147,JS-1147A,JS-1147R 1,000 pcs / PVC Box
JS-1147H 1,500 pcs / tape & reel
JS-1147V 1,000 pcs / tape & reel |
Applicable wires: AWG #28 - 32
Material: Phos . Bronze
Finish: Tin plated
Thickness: 0.15 mm
Q'ty: 15000 pcs/reel | |
|
