Path : Our Products > RCA JACK

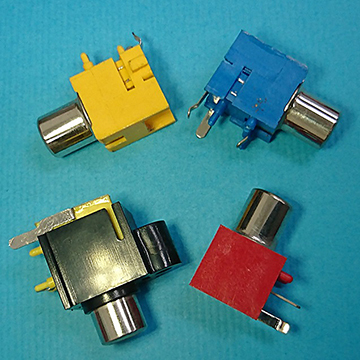

8714  RCA Jack Single Port Right Angle

8714-001
8714-002
8714-002
8714-101
8714-101
8714-201
8714-B01
8714-L01

Specifications

  • Contact Resistance: 30m Ohm Max. At AC 100mA Max.1KHz.
  • Insulation Resistance: 100M Ohm Min. At 500V DC.
  • Rated Voltage And Current: DC 12V,2A Max.
  • Dielectric Withstanding Voltage: 500V AC At 60Hz For 1 Minute.
  • Durability(Life Test): 4000 Cycles.
  • Insertion Force: 0.3-3.0 Kg.
  • Extraction Force: 0.3-3.0 Kg.
