Path : Our Products > IC Sockets

	2110 PLCC SOCKET DIP TYPE Pitch:2.54mm PBT and PPS RoHS (11/07)

View Enlargement

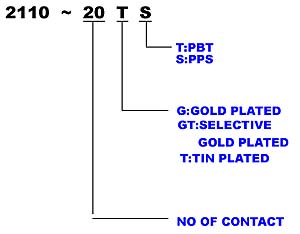

	2110-TTE_2110xxTTE
	2110-TSE_2110xxTSE

More Specification >>

Specifications

Insulator Material: PBT & 30% Glass Fiber (UL 94V-0)/ PPS & 40% Glass Fiber (UL 94V-0)
Contact Resistance: 30mΩ Max at DC 100MA
Insulation Resistance: 1000mΩ Min at DC 500V
Current Rating: 1AMP
Dielectric Withstanding Voltage: AC 500V for 1minute
Temperature Rating:-55°C ~ +105°C
Contact Material: Phosphor Bronze

Please write down your comment on this product, and click for Inquiry
