Path : Our Products > WAFER SERIES > 2.0mm

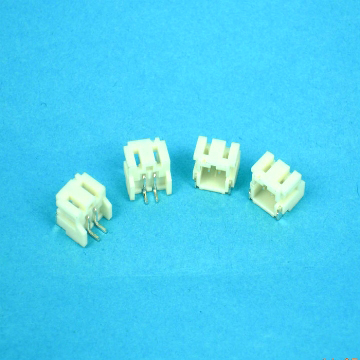

	4320-S Wafer / pitch: 2.0mm, Straight & Right Angle Type

View Enlargement

	4320-S01_90D
	4320-S02_180D

Specifications

Current Rating: 2A
Voltage Rating: 100V AC/DC
Contact Resistance: 20mΩ Max.
Insulation Resistance: 1000MΩ Min.
Dielectric Withstanding Voltage: 800 VAC/Minute
Operating Temperature:-25℃~85℃

Material

Housing: High Temperature Thermoplastic UL94V-0
Contact Pin: Copper Alloy SQ Pin=0.50mm
Tab: Copper Alloy

Finishes

Housing: HTN UL94V-0 Natural None Halogen Free
Contact Pin: Bright Tin Plated Over Nickel
Tab: Bright Tin Over Nickel
