Path : Our Products > WAFER SERIES > 0.8mm

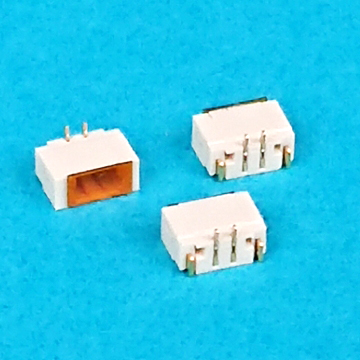

	432A Wafer To board wafer 0.8mm SMT Single Row

View Enlargement

	432A-S01
	432A-S02

Specifications

Current Rating: 0.5A AC/DC
Voltage Rating: 30V AC/DC
Contact Resistance: 20mΩ Max.
Insulation Resistance: 100MΩ Min.
Withstand Voltage: AC200V/Minute
Operating Temperature: -25℃ ~ +85℃

Material

Housing: Thermoplastic UL94V-0
Contact Pin: Copper Alloy T=0.15
Tab: Copper Alloy T=0.2

Finishes

Housing: LCP UL94V-0 Natural
Contact Pin: Gold Plated
Tab: Gold Plated
