Path : Our Products > USB Connectors > USB Type A

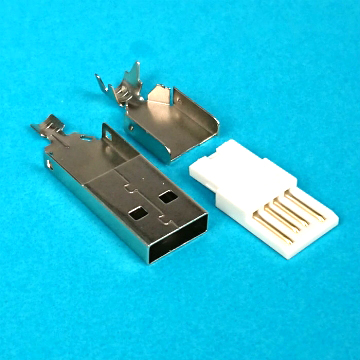

	3211-MSE-xxUB USB A TYPE SOLDER(M)

View Enlargement

3211-202

Specifications

Current rating: 1 A Max.
Dielectric withstanding voltage: 500 V(ac) for 1 minute.
Contact resistance: 30 mΩ Max.
Insulation resistance: 1000 MΩ Min at DC 500V.
Temperature range: -55℃~ +105℃

Material

Insulator: P.B. T UL 94-V0 rated.
Contact: Brass , t=0.25mm.
Shell: Cold Rolled Steel, t=0.35mm.

Finishes

Contacts: Gold flashed 1u ", 30u".
Shell: Nickel plated.

Please write down your comment on this product, and click for Inquiry
