Path : Our Products > MINI DIN JACK

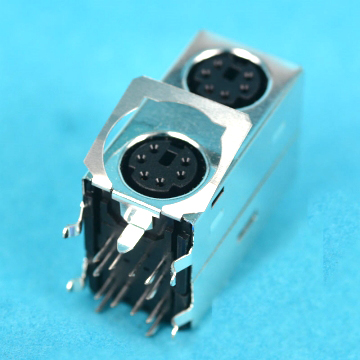

	3260-S6AF MINI DIN JACK

View Enlargement

3260-006

Specifications

Contact Resistance: 30m Ohm Max
Insulation Resistance: 100M Ohm Min.AT 500V DC
Rated Voltage And Current: DC12V.2A Max;AC 100V.1A Max
Dielectric Withstanding Voltage: 250V AC For 1 Minute
Durability (Life Test): 100 Cycles
Insertion Force: 4.0KG Maximun.
Extraction Force: 0.9KG Minimum.

Please write down your comment on this product, and click for Inquiry
