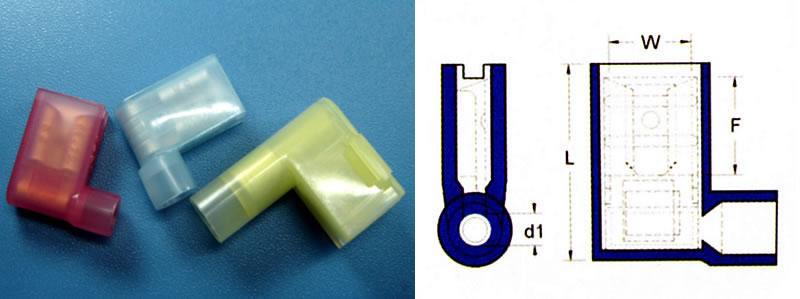

Our Products / Flag Female Quick Disconnects
     Nylon Type

  • Maximum Electic Rating: 105℃ 300V
    最高溫度: 105℃ 耐壓300V
  • Maximum Electric Current: (最大電流)
    22-16AWG / 0.5-1.5mm²: 10A
    16-14AWG / 1.5-2.5mm²: 15A
    12-10AWG / 4-6mm²: 24A
  • Terminal Body: Brass (端子材質: 黃銅)
  • Insulation: Nylon(護套材質: 尼龍)
  • Plating: Tin(表面處理: 鍍錫)

Model No.
Insulation Color
Wire Range mm2/Awg 适用
Tab Size 插片
Dimension(mm/inch)主要尺寸
Packing 包
351638FNM
Red
0.5-1.5mm2 22-16AWG
.032*.250 (0.8*6.35)
6.6(.260)/7.6(.299)/16.0(.630)/1.7(.067)/0.4(.016)
1000/500
355638FNM
Blue
1.5-2.5mm2 16-14AWG
.032*.250 (0.8*6.35)
6.6(.260)/7.6(.299)/16.0(.630)/2.3(.091)/0.4(.016)
1000/500


   Our Products / Flag Female Quick Disconnects
     PC type

Model No.
Insulation Color
Wire Range mm2/Awg 适用
Tab Size 插片
Dimension(mm/inch)主要尺寸
Packing 包
351638FEM
Red
0.5-1.5mm2 22-16AWG
.032*.250 (0.8*6.35)
6.6(.260)/7.6(.299)/16.0(.630)/1.7(.067)/0.4(.016)
1000/500
355638FEM
Blue
1.5-2.5mm2 16-14AWG
.032*.250 (0.8*6.35)
6.6(.260)/7.6(.299)/16.0(.630)/2.3(.091)/0.4(.016)
1000/500
