AC Fan > 150mm to 176mm

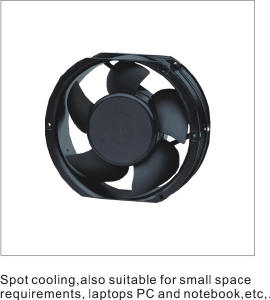

172x150x50
－ View Enlargement －
RANGING FROM 80x80x25 TO 205x205x72mm,WITH 110-220 VOLTAGE, CAN BE USED FOR HOME APPLIANCE, INDUSTRIAL EQUIPMENT, and MEDICAL INSTRUMENT AND OTHER APPLICATION.


Feature:
1.Powerful CFM with higher torque.
2.Optimized blade design for better performance.
3.Long life with patented Hypro bearing.
4.Full range of different dimension.

P.S Bearing type : ◎= Ball "B", ※ = Sleeve "S", ○ = 1B1S "B(S)", ● = Hyprobearing "X"

Model No. Voltage(V) Current(A) Power(W) Speed(rpm) Maximum AirFlow Maximum Pressure Noise(dB/A) Bearing Type
(CMM) (CFM) (InAq) (mmAq) B S B(S) X
KA1751HB-AT
115 / 50
0.48
59.6
2700
 5.662 194.6 0.51 11.75
52.3
 ◎
115 / 60
0.43
39.3
3000
 6.347 218.2 0.31 9.35
54.7
 ◎
KA1751MB-AT
115 / 50
0.35
29.8
2600
 5.476 186 0.37 7.796
50.5
 ◎
115 / 60
0.34
29.3
2500
 5.247 177.4 0.14 3.217
48.8
 ◎
KA1752HB-AT
230 / 50
0.27
47.9
2700
 5.662 196 0.49 11.75
51.3
 ◎
230 / 60
0.23
38.4
3000
 6.347 217.7 0.29 9.35
53.9
 ◎
KA1752MB-AT
230 / 50
0.19
32.6
2600
 5.476 185.3 0.36 7.796
50.4
 ◎
230 / 60
0.19
29.9
2500
 5.247 178.6 0.13 3.217
48.9
 ◎
