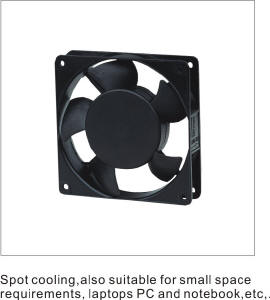

AC Fan > 119mm to 120mm

119.5x119.5x25.6
－ View Enlargement －
RANGING FROM 80x80x25 TO 205x205x72mm,WITH 110-220 VOLTAGE, CAN BE USED FOR HOME APPLIANCE, INDUSTRIAL EQUIPMENT, and MEDICAL INSTRUMENT AND OTHER APPLICATION.


Feature:
1.Powerful CFM with higher torque.
2.Optimized blade design for better performance.
3.Long life with patented Hypro bearing.
4.Full range of different dimension.

P.S Bearing type : ◎= Ball "B", ※ = Sleeve "S", ○ = 1B1S "B(S)", ● = Hyprobearing "X"

Model No. Voltage(V) Current(A) Power(W) Speed(rpm) Maximum AirFlow Maximum Pressure Noise(dB/A) Bearing Type
(CMM) (CFM) (InAq) (mmAq) B S B(S) X
KA1252MB-AWGL
230 / 50
0.11
19
2100
 1.953 69 0.133 3.378
38
 ◎ ※
230 / 60
0.09
17
2300
 2.236 79 0.142 3.607
42
 ◎ ※
KA1251MB-AWGL
230 / 50
0.22
19
2100
 1.953 69 0.133 3.378
38
 ◎ ※
230 / 60
0.19
17
2300
 2.236 79 0.142 3.607
42
 ◎ ※
