DC Fan > 92mm to 200mm

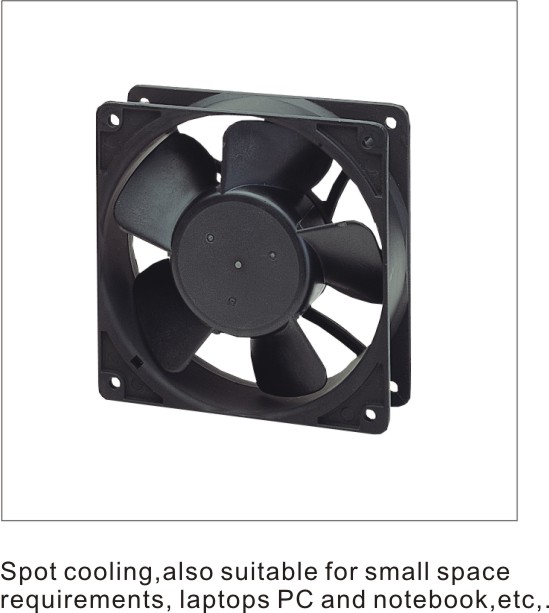

127x127x38
－ View Enlargement －

RANGING FROM 15x15x6mm TO 172x150x50mm,WITH 5/12/24/48V,CAN BE USED FOR NOTEBOOK, PC , COMMUNICATION INDUSTRY AND OTHER APPLICATION.

Feature:
1.Higher airflow, static pressure and torque.
2.Reduction for noise and power consumption.
3.Patented Hypro bearing for longer life.
4.Additional output functions are available.

P.S Bearing type : ◎= Ball "B", ※ = Sleeve "S", ○ = 1B1S "B(S)", ● = Hyprobearing "X"

Apply to server (higher performance requirements).

Model No. Voltage(V) Current(A) Power(W) Speed(rpm) Maximum AirFlow Maximum Pressure Noise(dB/A) Bearing Type
(CMM) (CFM) (InAq) (mmAq) B S B(S) X
KD1312HB-F51
12
0.78
9.12
2950
 4.559 161 0.35 8.75
53
 ◎
KD1312UB-F51
12
1.22
14.64
3500
 5.466 193 0.46 11.5
56
 ◎
KD1324HB-F51
24
0.41
9.84
2950
 4.559 161 0.35 8.75
53
 ◎
KD1348LB-F51
48
0.12
5.76
2000
 3.03 107 0.16 4
41
 ◎
KD1348MB-F51
48
0.17
8.16
2500
 3.766 133 0.23 5.75
47.5
 ◎
KD1348HB-F51
48
0.23
11.04
2950
 4.559 161 0.35 8.75
53
 ◎
KD1348UB-F51
48
0.34
16.32
3500
 5.466 193 0.46 11.5
56
 ◎
KD1348XB-F51
48
0.55
26.4
4100
 6.4 226 0.55 13.75
62
 ◎
KD1348VB-F51
48
0.7
33.6
4500
 6.853 242 0.63 15.75
64.5
 ◎
