Fan & Motor > DC Blower

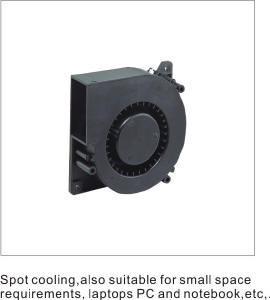

120x120x32
－ View Enlargement －
RANGING FROM 40x52x10 TO 120x120x32mm, WITH 5 TO 48V, CAN BE APPLIED IN PC AND COMMUNICATION FIELD AND BUILT-IN DESIGN FOR THERMAL SOLUTIONS.

Feature:
1.Low start-up voltage, low power consumption.
2.Current automatically shutdown protection and restart function.
3.Special function output available, like PWM design control circuit.
4.Patent back-incline blades design for high airflow efficiency.

P.S Bearing type : ◎= Ball "B", ※ = Sleeve "S", ○ = 1B1S "B(S)", ● = Hyprobearing "X"

Model No. Voltage(V) Current(A) Power(W) Speed(rpm) Maximum AirFlow Maximum Pressure Noise(dB/A) Bearing Type
(CMM) (CFM) (InAq) (mmAq) B S B(S) X
KB1212DB-Y01
12
0.3
3.6
1800
 0.619 21.97 0.434 10.85
46.6
 ◎ ※ ●
KB1212LB-Y01
12
0.45
5.4
2100
 0.718 25.48 0.659 16.47
48
 ◎ ※ ●
KB1212MB-Y01
12
0.56
6.72
2300
 0.791 28.09 0.829 20.72
49
 ◎ ※ ●
KB1212HB-Y01
12
0.89
10.68
2600
 0.881 31.28 0.916 22.9
55
 ◎ ※ ●
KB1212UB-Y01
12
1.1
13.2
2800
 0.94 33.4 1.148 28.7
53.3
 ◎ ※ ●
KB1212XB-Y01
12
1.4
16.8
3100
 1.07 38 1.412 35.3
57
 ◎
KB1224DB-Y01
24
0.2
4.8
1800
 0.619 21.97 0.434 10.85
46.6
 ◎ ※ ●
KB1224LB-Y01
24
0.3
7.2
2100
 0.718 25.48 0.659 16.47
48
 ◎ ※ ●
KB1224MB-Y01
24
0.39
9.36
2300
 0.791 28.09 0.829 20.72
49
 ◎ ※ ●
KB1224HB-Y01
24
0.49
11.76
2600
 0.881 31.28 0.916 22.9
55
 ◎ ※ ●
KB1224UB-Y01
24
0.55
13.2
2800
 0.94 33.4 1.148 28.7
53.3
 ◎ ※ ●
KB1224XB-Y01
24
0.71
17.04
3100
 1.07 38 1.412 35.3
57
 ◎
KB1248DB-Y01
48
0.12
5.76
1800
 0.619 21.97 0.434 10.85
46.6
 ◎ ※ ●
KB1248LB-Y01
48
0.17
8.16
2100
 0.718 25.48 0.659 16.47
48
 ◎ ※ ●
KB1248MB-Y01
48
0.2
9.6
2300
 0.791 28.09 0.829 20.72
49
 ◎ ※ ●
KB1248HB-Y01
48
0.24
11.52
2600
 0.881 31.28 0.916 22.9
55
 ◎ ※ ●
KB1248UB-Y01
48
0.34
16.32
2800
 0.94 33.4 1.148 28.7
53.3
 ◎ ※ ●
