Fan & Motor > DC Blower

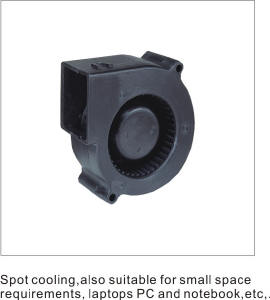

75x75x30
－ View Enlargement －
RANGING FROM 50x50x9 TO 120x120x32mm, WITH 5 TO 48V, CAN BE APPLIED IN PC AND COMMUNICATION FIELD AND BUILT-IN DESIGN FOR THERMAL SOLUTIONS.

Feature:
1.Low start-up voltage, low power consumption.
2.Current automatically shutdown protection and restart function.
3.Special function output available, like PWM design control circuit.
4.Patent back-incline blades design for high airflow efficiency.

P.S Bearing type : ◎= Ball "B", ※ = Sleeve "S", ○ = 1B1S "B(S)", ● = Hyprobearing "X"\

Model No. Voltage(V) Current(A) Power(W) Speed(rpm) Maximum AirFlow Maximum Pressure Noise(dB/A) Bearing Type
(CMM) (CFM) (InAq) (mmAq) B S B(S) X
KD7512LB
12
0.11
1.32
2200
 0.184 6.5 0.151 3.77
29
 ◎ ※ ●
KD7512MB
12
0.15
1.8
2600
 0.22 7.78 0.234 5.84
34.9
 ◎ ※ ●
KD7512HB
12
0.24
2.88
3000
 0.258 9.11 0.33 8.24
38.5
 ◎ ※ ●
KD7512UB
12
0.52
6.24
4200
 0.369 13.05 0.723 18.07
44.7
 ◎ ※ ●
KD7524LB
24
0.08
1.92
2200
 0.184 6.5 0.151 3.77
29
 ◎ ※ ●
KD7524MB
24
0.14
3.36
2600
 0.22 7.78 0.234 5.84
34.9
 ◎ ※ ●
KD7524HB
24
0.16
3.84
3000
 0.258 9.11 0.33 8.24
38.5
 ◎ ※ ●
KD7524UB
24
0.27
6.48
4200
 0.369 13.05 0.723 18.07
44.7
 ◎ ※ ●
