Fan & Motor > DC Blower

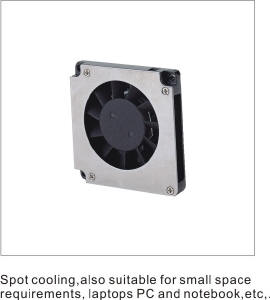

45x45x07
－ View Enlargement －
RANGING FROM 50x50x9 TO 120x120x32mm, WITH 5 TO 48V, CAN BE APPLIED IN PC AND COMMUNICATION FIELD AND BUILT-IN DESIGN FOR THERMAL SOLUTIONS.

Feature:
1.Low start-up voltage, low power consumption.
2.Current automatically shutdown protection and restart function.
3.Special function output available, like PWM design control circuit.
4.Patent back-incline blades design for high airflow efficiency.

P.S Bearing type : ◎= Ball "B", ※ = Sleeve "S", ○ = 1B1S "B(S)", ● = Hyprobearing "X"

Model No. Voltage(V) Current(A) Power(W) Speed(rpm) Maximum AirFlow Maximum Pressure Noise(dB/A) Bearing Type
(CMM) (CFM) (InAq) (mmAq) B S B(S) X
KB4505LB-QA0(S)
5
0.07
0.35
4700
 0.042 1.5 0.202 5.13
23.3
 ○
KB4505MB-QA0(S)
5
0.11
0.55
5500
 0.048 1.7 0.289 7.33
27.9
 ○
KB4505LB-QA0(S)
5
0.14
0.7
6200
 0.059 2.1 0.391 9.93
31.2
 ○
KB4505LX-QA0
5
0.07
0.35
4300
 0.039 1.37 0.163 4.13
20.8
 ●
KB4505MX-QA0
5
0.11
0.55
5000
 0.044 1.56 0.23 5.83
25.8
 ●
KB4505HX-QA0
5
0.14
0.7
5700
 0.052 1.83 0.32 8.14
28.7
 ●
KB4512LB-QA0(S)
12
0.08
0.96
4700
 0.042 1.5 0.202 5.13
23.3
 ○
KB4512MB-QA0(S)
12
0.09
1.08
5500
 0.048 1.7 0.289 7.33
27.9
 ○
KB4512HB-QA0(S)
12
0.1
1.2
6200
 0.059 2.1 0.391 9.93
31.2
 ○
