Fan & Motor > DC Blower

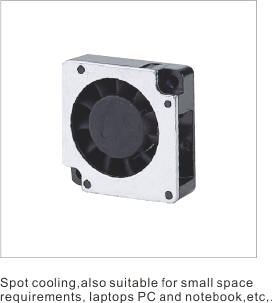

35x35x10
－ View Enlargement －
RANGING FROM 50x50x9 TO 120x120x32mm, WITH 5 TO 48V, CAN BE APPLIED IN PC AND COMMUNICATION FIELD AND BUILT-IN DESIGN FOR THERMAL SOLUTIONS.

Feature:
1.Low start-up voltage, low power consumption.
2.Current automatically shutdown protection and restart function.
3.Special function output available, like PWM design control circuit.
4.Patent back-incline blades design for high airflow efficiency.

P.S Bearing type : ◎= Ball "B", ※ = Sleeve "S", ○ = 1B1S "B(S)", ● = Hyprobearing "X"

Model No. Voltage(V) Current(A) Power(W) Speed(rpm) Maximum AirFlow Maximum Pressure Noise(dB/A) Bearing Type
(CMM) (CFM) (InAq) (mmAq) B S B(S) X
KB3505LB-GA0
5
0.09
0.45
5000
 0.026 0.91 0.042 1.05
23
 ◎ ○
KB3505MX-GA0
5
0.11
0.55
6000
 0.035 1.22 0.153 3.84
27.5
 ◎ ○ ●
KB3505HX-GA0
5
0.17
0.85
7000
 0.043 1.52 0.199 4.98
30.7
 ◎ ○ ●
KB3512LX-GA0
12
0.11
0.13
5000
 0.026 0.91 0.042 1.05
23
 ○ ●
KB3512MB-GA0
12
0.09
0.11
6000
 0.035 1.22 0.153 3.84
27.5
 ◎ ○ ●
KB3512MB-GA0
12
0.1
0.12
7000
 0.043 1.52 0.199 4.98
30.7
 ◎ ○
