Receptacle Disconnects(NEW) > Receptacle Disconnects-Polycarbonated Insulated(PC)

735 PGTS Series
－ View Enlargement －
  • TERMINAL MATERIAL : BRASS
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR
  • PC : PGTS

Model No. Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG

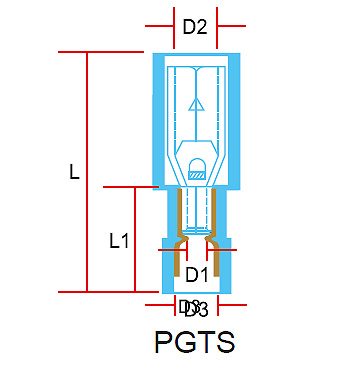

D1 D3 H L L1 L2 AWG(#) D2(mm)
735004 PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 4.3 5.5 23.6 11.5 7.3 0.157 4.0 100/500/1000
735005 PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 4.8 5.5 23.6 11.5 7.0 0.196 5.0 100/500/1000
