Receptacle Disconnects(NEW) > Receptacle Disconnects-PVC Insulated(Vinyl)

733 Series
－ View Enlargement －
  • TERMINAL MATERIAL : BRASS
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR
  • VINYL : VM, PIPG

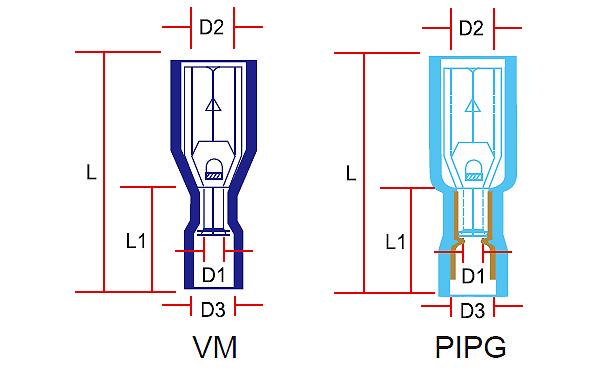

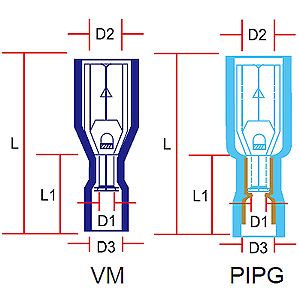

Model No. Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG
D1 D3 H L L1 L2 AWG(#) D2(mm)
733005 VM/PIPG Yellow AWG12-10
2.5-6mm² 		3.5 6.5 6.5 26.7 13.8 7 0.196 5.0 100/500/1000
