Piggy Back Disconnects(NEW) > Piggy Back Disconnects-Polycarbonated Insulated (PC)

393 FEM/PGTS Series

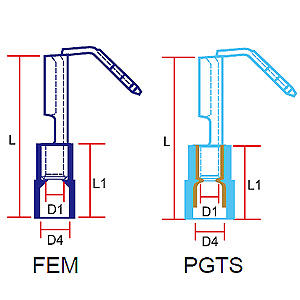

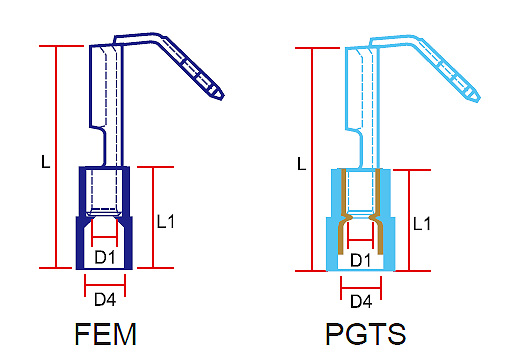

－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
  • POLYCARBONATE INSULATOR
  • PC : FEM, PGTS

Model No. Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Insulation
Color
D1 D2 D3 D4 H L L1 L2 AWG(#) D2(mm)
393638 FEM/PGTS

AWG 12~10

2.5~6mm²

3.5 6.6 8.0 6.5 6.5 24.0 13.5 7.5 .250x.032 6.3x0.8 100/500/1000 Yellow
