Piggy Back Disconnects(NEW) > Piggy Back Disconnects

391 Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
  • POLYCARBONATE INSULATOR
  • NB : NON-INSULATED BRAZED SEAM
  • NBT : NON-INSULATED BUTTED SEAM

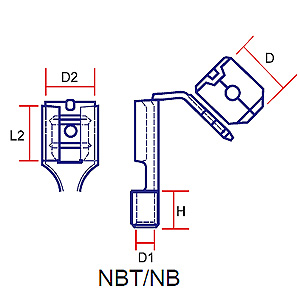

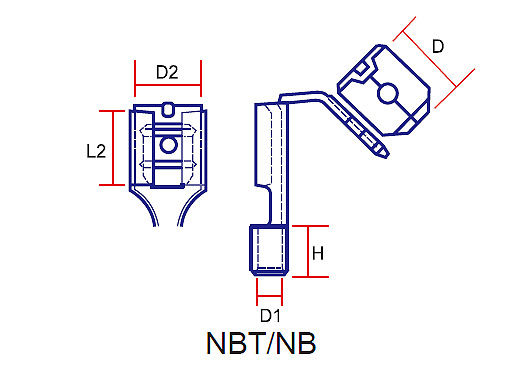

Model No. Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG
D1 D2 D3 D4 H L L1 L2 AWG(#) D2(mm)
391638 AWG 22-16
0.5-1.5mm² 		1.8 6.6 8.0 4.3 5.5 20.0 10.4 7.5 .250x.032 6.3x0.8 100/500/1000
