Bullet Disconnectors(NEW) > Bullet Disconnectors-PVC Insulated(Vinyl)

375 VM/PIPG Series
－ View Enlargement －
  • TERMINAL MATERIAL : BRASS
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR
  • VINYL : VM, PIPG

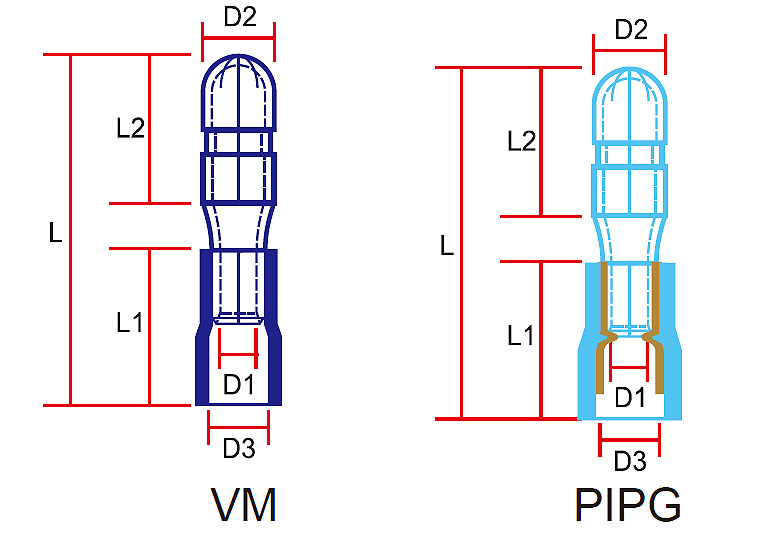

Model No. Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG
D1 D2 D3 H L L1 L2 AWG(#) D2(mm)
375004 VM/PIPG Blue AWG16~14
1.5~2.5mm² 		2.3 4.0 4.8 5.5 20.5 10.0 8.5 0.157 4.0 100/500/1000
375005 VM/PIPG Blue AWG16~14
1.5~2.5mm² 		2.3 5.0 4.8 5.5 21.5 10.0 8.5 0.196 5.0 100/500/1000
