Female Disconnectors(NEW) > Female Disconnectors-Polycarbonated Insulated

363 Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR

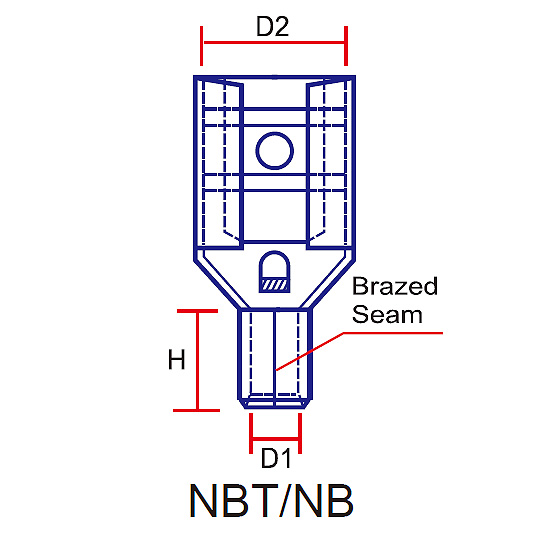

  • NB : NON-INSULATED BRAZED SEAM
  • NBT : NON-INSULATED BUTTED SEAM

Model No. Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG
D1 D2 D3 H L L1 AWG(#) D2(mm)
363485 AWG 12~10
2.5~6mm² 		3.5 5.0 6.6 5.5 24.6 13.5 .187x.020 4.8x0.5 100/500/1000
363488 AWG 12~10
2.5~6mm² 		3.5 5.0 6.6 5.5 24.6 13.5 .187x.032 4.8x0.8 100/500/1000
363638 AWG 12~10
2.5~6mm² 		3.5 6.6 6.6 5.5 24.6 13.5 .250x.032 6.3x0.8 100/500/1000
363912 AWG 12~10
2.5~6mm² 		3.5 10.0 6.6 5.5 29.5 13.7 .375x.047 9.5x1.2 100/500/1000
