Pin Terminals (NEW) > Pin Terminals-Nylon Insulated ( 扁針形端子)

335 FNM/PING Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
  • POLYCARBONATE INSULATOR
  • PC : FEM, PGTS

Model No. Insulation
Color 		Wire Range Dimension(mm) PACKING
POLYBAG

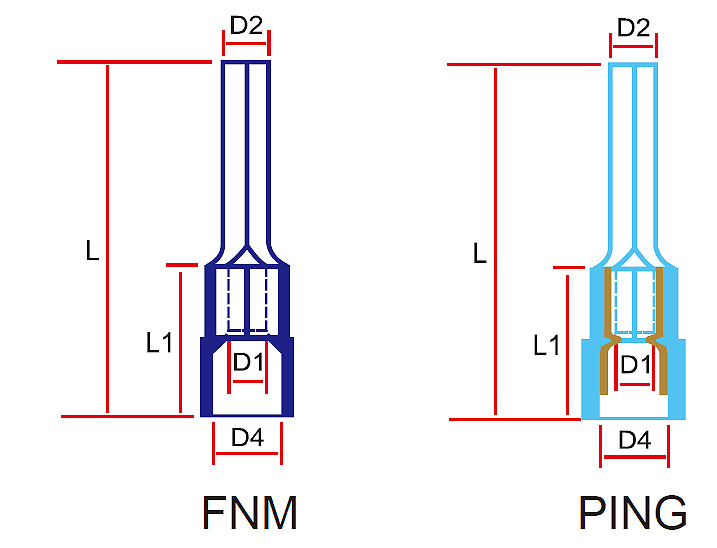

D1 D2 T D4 H1 H2 L L1
335007 FNM/PING Blue AWG 16-14
1.5-2.5mm² 		2.3 1.9 0.8 4.7 12.6 5.5 17 10 100/500/1000
335009 FNM/PING Blue AWG 16-14
1.5-2.5mm² 		2.3 1.9 0.8 4.7 14.6 5.5 19 10 100/500/1000
335017 FNM/PING Blue AWG 16-14
1.5-2.5mm² 		2.3 1.9 0.8 4.7 22.7 5.5 27 10 100/500/1000
335019 FNM/PING Blue AWG 16-14
1.5-2.5mm² 		2.3 1.9 0.8 4.7 17.6 5.5 22 10 100/500/1000
