Pin Terminals (NEW) > Pin Terminals-Vinyl Insulated ( PVC 圓針形端子)

331 VM/PIPG Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR
  • VINYL : VM, PIPG

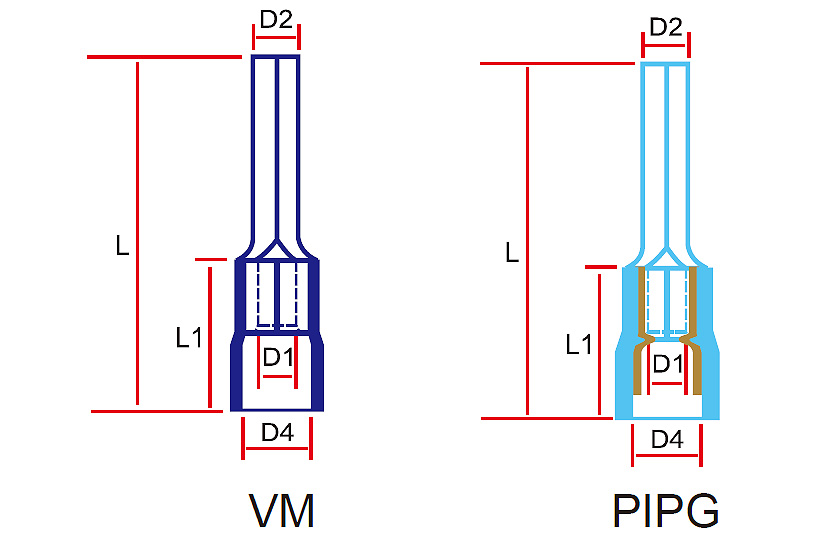

Model No. Insulation
Color 		Wire Range Dimension(mm) PACKING
POLYBAG
D1 D2 T D4 H1 H2 L L1
331007 VM/PIPG Red AWG 22-16
0.5-1.5mm² 		1.8 1.9 0.8 4.3 12.6 5.5 17 10 100/500/1000
331009 VM/PIPG Red AWG 22-16
0.5-1.5mm² 		1.8 1.9 0.8 4.3 14.6 5.5 19 10 100/500/1000
331010 VM/PIPG Red AWG 22-16
0.5-1.5mm² 		1.8 1.9 0.8 4.3 15.6 5.5 20 10 100/500/1000
331019 VM/PIPG Red AWG 22-16
0.5-1.5mm² 		1.8 1.9 0.8 4.3 17.6 5.5 22 10 100/500/1000
