Pin Terminals (NEW) > Pin Terminals-Non Insulated ( 圓針形裸端)

335 Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR

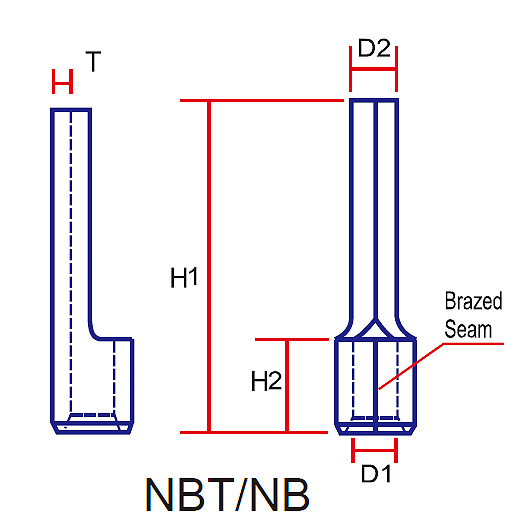

  • NB : NON-INSULATED BRAZED SEAM
  • NBT : NON-INSULATED BUTTED SEAM

Model No. Wire Range Dimension(mm) PACKING
POLYBAG
D1 D2 T D4 H1 H2 L L1
335007 AWG 16-14
1.5~2.5mm² 		2.3 1.9 0.8 4.7 12.6 5.5 17 10 100/500/1000
335009 AWG 16-14
1.5~2.5mm² 		2.3 1.9 0.8 4.7 14.6 5.5 19 10 100/500/1000
331017 AWG 16-14
1.5~2.5mm² 		2.3 1.9 0.8 4.7 22.7 5.5 27 10 100/500/1000
331019 AWG 16-14
1.5~2.5mm² 		2.3 1.9 0.8 4.7 17.6 5.5 22 10 100/500/1000
