Pin Terminals (NEW) > Pin Terminals-Non Insulated ( 圓針形裸端)

331 Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR
  • NB : NON-INSULATED BRAZED SEAM
  • NBT : NON-INSULATED BUTTED SEAM

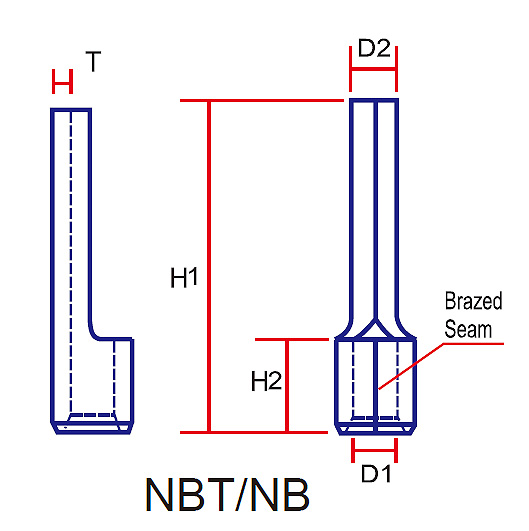

Model No. Wire Range Dimension(mm) PACKING
POLYBAG
D1 D2 T D4 H1 H2 L L1
331007 AWG 22-16
0.5~1.5mm² 		1.8 1.9 0.8 4.3 12.6 5.5 17 10 100/500/1000
331009 AWG 22-16
0.5~1.5mm² 		1.8 1.9 0.8 4.3 14.6 5.5 19 10 100/500/1000
331010 AWG 22-16
0.5~1.5mm² 		1.8 1.9 0.8 4.3 15.6 5.5 20 10 100/500/1000
331019 AWG 22-16
0.5~1.5mm² 		1.8 1.9 0.8 4.3 17.6 5.5 22 10 100/500/1000
