Blade Terminals(NEW) > Blade Terminals-Polycarbonated Insulated ( PC 扁針形端子)

335 FEM/PGTS Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR
  • PC : FEM, PGTS

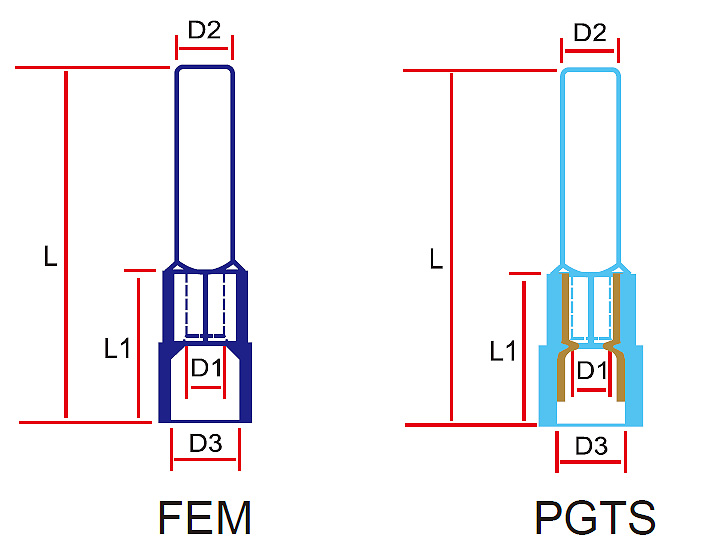

Model No. Insulation
Color 		Wire Range Dimension(mm) PACKING
POLYBAG
D1 D2 D3 L1 L H2 H1
335310 FEM/PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 2.5 4.8 10 20.0 5.5 15.5 100/500/1000
335318 FEM/PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 2.5 4.8 10 28.0 5.5 23.5 100/500/1000
