Blade Terminals(NEW) > Bullet Disconnectors-PVC(Vinyl)

333 VM/PIPG Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR
  • VINYL : VM, PIPG

Model No. Insulation
Color 		Wire Range Dimension(mm) PACKING
POLYBAG

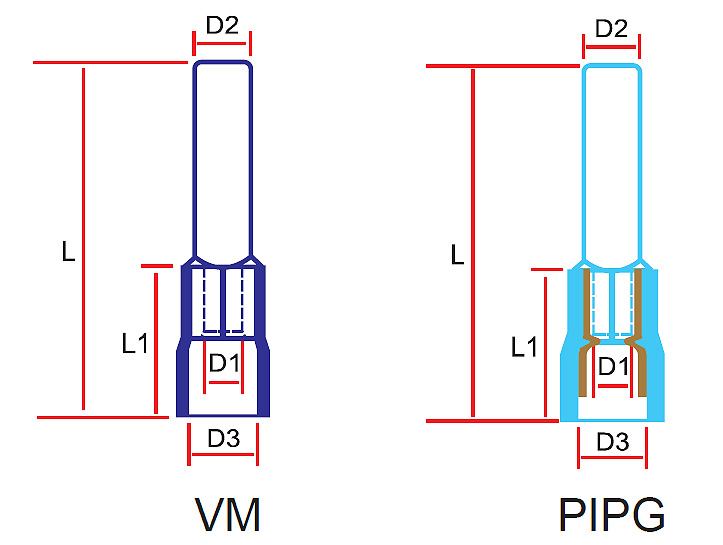

D1 D2 D3 L1 L H2 H1
333410 VM/PIPG Yellow AWG 12~10
2.5~6mm² 		3.5 3.0 6.5 13.5 23.5 6.5 16.7 100/500/1000
333416 VM/PIPG Yellow AWG 12~10
2.5~6mm² 		3.5 4.8 6.5 13.5 29.5 6.5 22.5 100/500/1000
333218 VM/PIPG Yellow AWG 12~10
2.5~6mm² 		3.5 2.1 6.5 13.5 31.5 6.5 24.5 100/500/1000
