Blade Terminals(NEW) > Blade Terminals-Non Insulated ( 扁針形裸端)

333 Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR

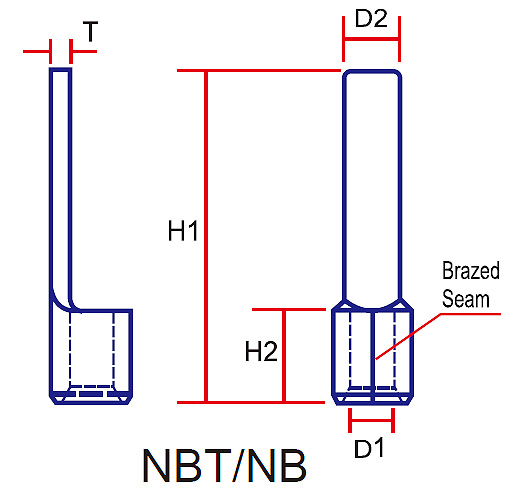

  • NB : NON-INSULATED BRAZED SEAM
  • NBT : NON-INSULATED BUTTED SEAM

Model No. Wire Range Dimension(mm) PACKING
POLYBAG
D1 D2 D3 L1 L L2 H1
333410 AWG 12~10
2.5~6mm² 		3.5 3.0 6.5 13.5 23.5 6.5 16.7 100/500/1000
333416 AWG 12~10
2.5~6mm² 		3.5 4.8 6.5 13.5 29.5 6.5 22.5 100/500/1000
333218 AWG 12~10
2.5~6mm² 		3.5 2.1 6.5 13.5 31.5 6.5 24.5 100/500/1000
