Spade Terminals(NEW) > Spade Terminals -Polycarbonated Insulated ( PC 叉形端子)

321 FEM/PGTS Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR
  • PC : FEM, PGTS

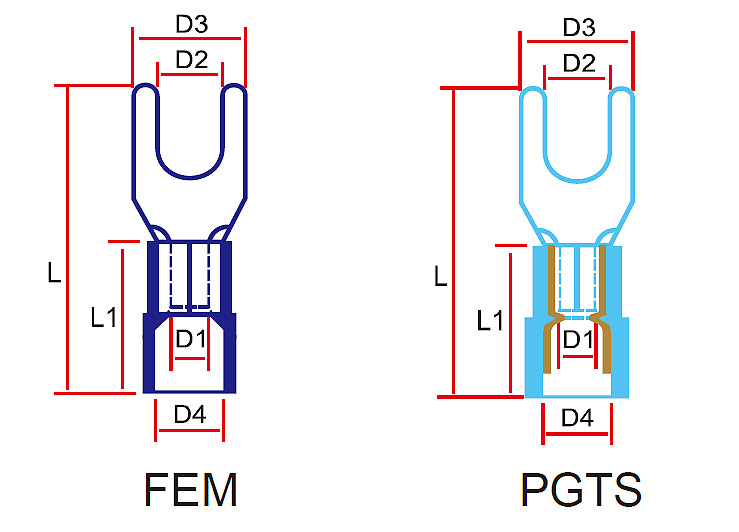

Model No. Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG
D1 D3 D4 H1 H2 T AWG(#) D2(mm)
321032 FEM/PGTS Red AWG 22~16
0.5~1.5mm² 		1.8 5.7 4.1 14.5 5.5 0.8 4 3.2 100/500/1000
321037 FEM/PGTS Red AWG 22~16
0.5~1.5mm² 		1.8 6.4 4.1 14.5 5.5 0.8 6 3.7 100/500/1000
321043 FEM/PGTS Red AWG 22~16
0.5~1.5mm² 		1.8 6.4 4.1 15.5 5.5 0.8 8 4.3 100/500/1000
321043L FEM/PGTS Red AWG 22~16
0.5~1.5mm² 		1.8 7.2 4.1 15.5 5.5 0.8 8 4.3 100/500/1000
321053 FEM/PGTS Red AWG 22~16
0.5~1.5mm² 		1.8 8.5 4.1 16.5 5.5 0.8 10 5.3 100/500/1000
321064 FEM/PGTS Red AWG 22~16
0.5~1.5mm² 		1.8 11.0 4.1 18.5 5.5 0.8 1／4 6.4 100/500/1000
