Spade Terminals(NEW) > Spade Terminals -Non Insulated ( 叉形裸端)

323 Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR

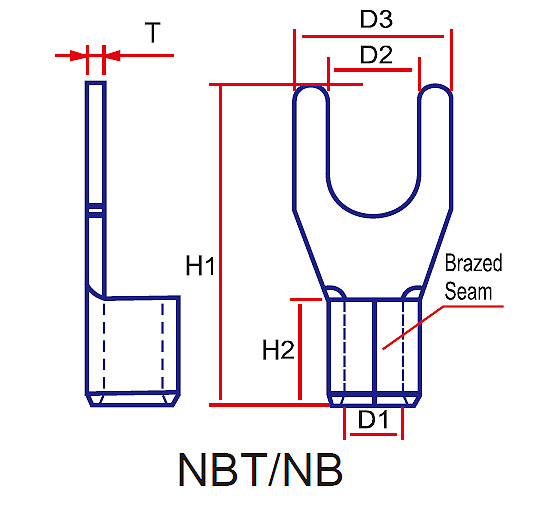

  • NB : NON-INSULATED BRAZED SEAM
  • NBT : NON-INSULATED BUTTED SEAM

Model No. Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG
D1 D3 D4 H1 H2 T AWG(#) D2(mm)
323032 AWG 12~10
2.5~6mm² 		3.5 8.0 6.3 18.0 6.5 1.0 4 3.2 100/500/1000
323037 AWG 12~10
2.5~6mm² 		3.5 10.0 6.3 18.5 6.5 1.0 6 3.7 100/500/1000
323043 AWG 12~10
2.5~6mm² 		3.5 8.0 6.3 18.5 6.5 1.0 8 4.3 100/500/1000
323053 AWG 12~10
2.5~6mm² 		3.5 10.0 6.3 19.2 6.5 1.0 10 5.3 100/500/1000
323064 AWG 12~10
2.5~6mm² 		3.5 11.0 6.3 25.5 6.5 1.0 1／4 6.4 100/500/1000
323084 AWG 12~10
2.5~6mm² 		3.5 14.0 6.3 26.8 6.5 1.0 5／16 8.4 100/500/1000
323010 AWG 12~10
2.5~6mm² 		3.5 18.0 6.3 26.0 6.5 1.0 3／8 10.0 100/500/1000
