Spade Terminals(NEW) > Spade Terminals -Non Insulated ( 叉形裸端)

325 Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR
  • NB : NON-INSULATED BRAZED SEAM
  • NBT : NON-INSULATED BUTTED SEAM

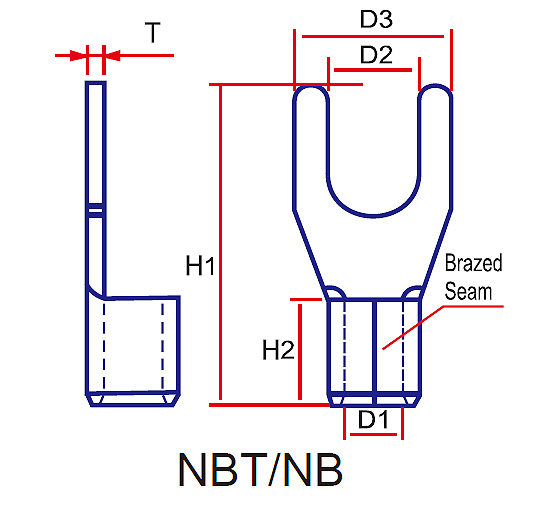

Model No. Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG
D1 D3 D4 H1 H2 T AWG(#) D2(mm)
325032 AWG 16~14
1.5~2.5mm² 		2.3 6.0 4.6 15.5 5.5 0.8 4 3.2 100/500/1000
325037 AWG 16~14
1.5~2.5mm² 		2.3 6.4 4.6 15.5 5.5 0.8 6 3.7 100/500/1000
325043 AWG 16~14
1.5~2.5mm² 		2.3 6.4 4.6 15.5 5.5 0.8 8 4.3 100/500/1000
325043L AWG 16~14
1.5~2.5mm² 		2.3 7.2 4.6 15.5 5.5 0.8 8 4.3 100/500/1000
325053 AWG 16~14
1.5~2.5mm² 		2.3 8.5 4.6 17.5 5.5 0.8 10 5.3 100/500/1000
325064 AWG 16~14
1.5~2.5mm² 		2.3 11.0 4.6 21.5 5.5 0.8 1／4 6.4 100/500/1000
