Ring Terminals(NEW) > Ring Terminals-Polycarbonated Insulated ( PC 圓形端子)

315 FEM/PGTS Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR
  • NYLON : FNM, PING

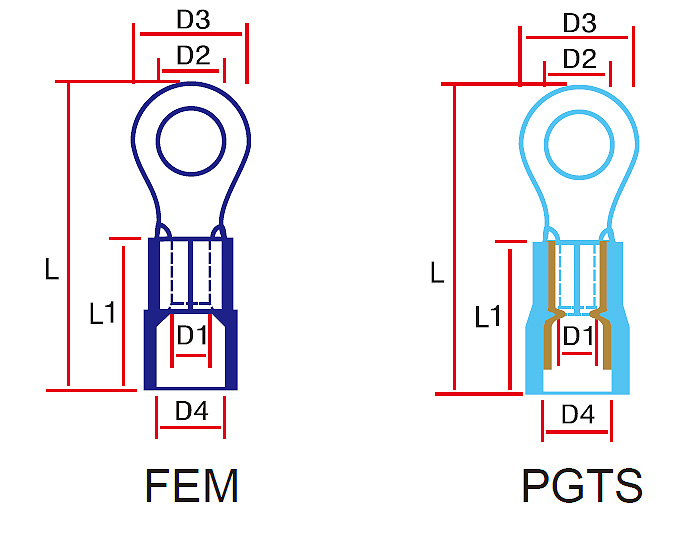

Model No. Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG
D1 D3 D4 H1 H2 T AWG(#) D2(mm)
315032 FEM/PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 5.5 4.6 13.8 5.5 0.8 4 3.2 100/500/1000
315037 FEM/PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 6.6 4.6 14.3 5.5 0.8 6 3.7 100/500/1000
315043S FEM/PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 6.6 4.6 15.5 5.5 0.8 8 4.3 100/500/1000
315043 FEM/PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 8.0 4.6 16.2 5.5 0.8 8 4.3 100/500/1000
315053S FEM/PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 8.0 4.6 17.2 5.5 0.8 10 5.3 100/500/1000
315053 FEM/PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 8.0 4.6 21.2 5.5 0.8 10 5.3 100/500/1000
315064 FEM/PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 11.0 4.6 21.2 5.5 0.8 1／4 6.4 100/500/1000
315084 FEM/PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 12.0 4.6 23.2 5.5 0.8 5／16 8.4 100/500/1000
315010 FEM/PGTS Blue AWG 16~14
1.5~2.5mm² 		2.3 14.5 4.6 27.7 5.5 0.8 3／8 10.0 100/500/1000
