Ring Terminals(NEW) > Ring Terminals-Polycarbonated Insulated ( PC 圓形端子)

311 FEM/PGTS Series

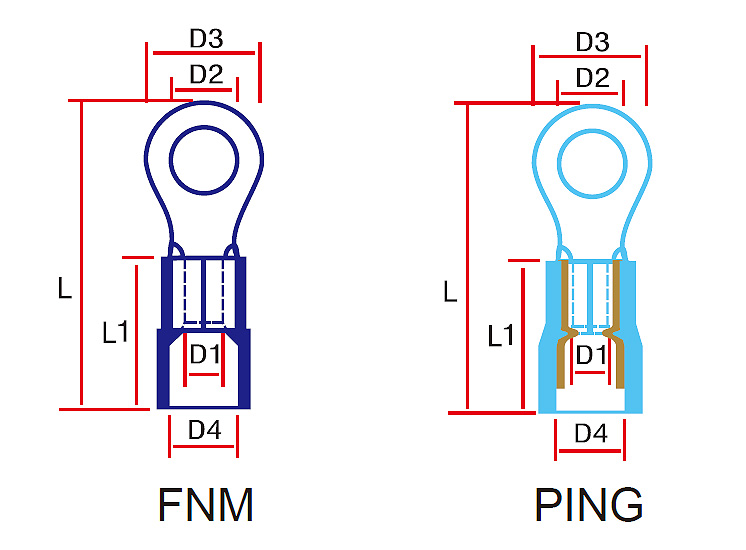

－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR
  • NYLON : FNM, PING

Model No. Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG
D1 D3 D4 H1 H2 T AWG(#) D2(mm)
311032 FEM/PGTS Red AWG 22-16
0.5-1.5mm² 		1.8 5.5 4.0 12.2 5.5 0.8 4 3.2 100/500/1000
311037 FEM/PGTS Red AWG 22-16
0.5-1.5mm² 		1.8 6.5 4.0 15.8 5.5 0.8 6 3.7 100/500/1000
311043 FEM/PGTS Red AWG 22-16
0.5-1.5mm² 		1.8 8.0 4.0 16.3 5.5 0.8 8 4.3 100/500/1000
311053 FEM/PGTS Red AWG 22-16
0.5-1.5mm² 		1.8 8.0 4.0 21.2 5.5 0.8 10 5.3 100/500/1000
311064 FEM/PGTS Red AWG 22-16
0.5-1.5mm² 		1.8 11.0 4.0 21.2 5.5 0.8 1／4 6.4 100/500/1000
311084 FEM/PGTS Red AWG 22-16
0.5-1.5mm² 		1.8 12.0 4.0 23.8 5.5 0.8 5／16 8.4 100/500/1000
311010 FEM/PGTS Red AWG 22-16
0.5-1.5mm² 		1.8 14.5 4.0 25.2 5.5 0.8 3／8 10.0 100/500/1000
