Ring Terminals(NEW) > Ring Terminals-Nylon Insulated ( Nylon 圓形端子)

313 FNM/PING Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR

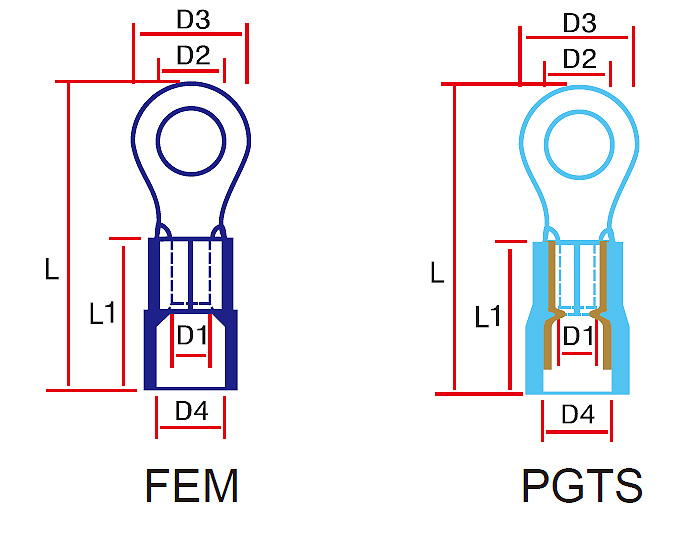

  • PC : FEM, PGTS

Model No. Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG
D1 D3 D4 H1 H2 T AWG(#) D2(mm)
313032 FNM/PING Yellow AWG 12~10
2.5~6mm² 		3.5 7.2 6.5 20.0 6.5 1.0 4 3.2 100/500/1000
313037 FNM/PING Yellow AWG 12~10
2.5~6mm² 		3.5 7.2 6.5 20.0 6.5 1.0 6 3.7 100/500/1000
313043S FNM/PING Yellow AWG 12~10
2.5~6mm² 		3.5 7.2 6.5 20.0 6.5 1.0 8 4.3 100/500/1000
313043 FNM/PING Yellow AWG 12~10
2.5~6mm² 		3.5 9.5 6.5 20.0 6.5 1.0 8 4.3 100/500/1000
313053 FNM/PING Yellow AWG 12~10
2.5~6mm² 		3.5 9.5 6.5 20.0 6.5 1.0 10 5.3 100/500/1000
313064 FNM/PING Yellow AWG 12~10
2.5~6mm² 		3.5 11.0 6.5 22.0 6.5 1.0 1／4 6.4 100/500/1000
313084 FNM/PING Yellow AWG 12~10
2.5~6mm² 		3.5 14.0 6.5 27.3 6.5 1.0 5／16 8.4 100/500/1000
313010 FNM/PING Yellow AWG 12~10
2.5~6mm² 		3.5 15.0 6.5 28.0 6.5 1.0 3／8 10.0 100/500/1000
313010L FNM/PING Yellow AWG 12~10
2.5~6mm² 		3.5 19.0 6.5 32.0 6.5 1.0 3／8 10.0 100/500/1000
313013 FNM/PING Yellow AWG 12~10
2.5~6mm² 		3.5 19.0 6.5 32.0 6.5 1.0 1／2 13.0 100/500/1000
