Ring Terminals(NEW) > Ring Terminals-Non Insulated ( 圓形裸端)

313 Series
－ View Enlargement －
  • TERMINAL MATERIAL : COPPER RATE
  • ALTERNATIVE INSULATOR:
    FUNNEL BARREL EASY ENTRY
    POLYCARBONATE INSULATOR

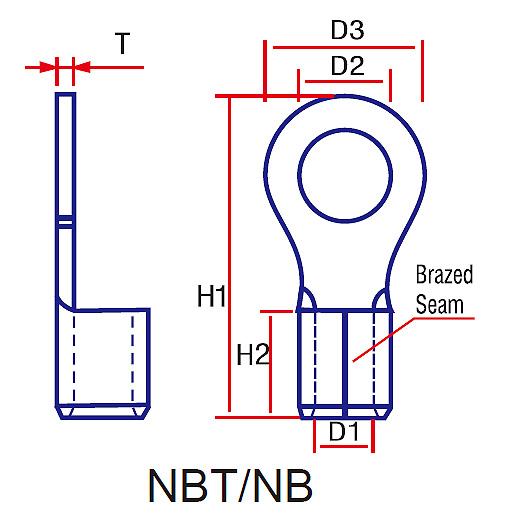

  • NB : NON-INSULATED BRAZED SEAM
  • NBT : NON-INSULATED BUTTED SEAM
    　

Model No. Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG
D1 D3 D4 H1 H2 T AWG(#) D2(mm)
313032 AWG 12~10
2.5~6mm² 		3.5 7.2 6.5 20.0 6.5 1.0 4 3.2 100/500/1000
313037 AWG 12~10
2.5~6mm² 		3.5 7.2 6.5 20.0 6.5 1.0 6 3.7 100/500/1000
313043S AWG 12~10
2.5~6mm² 		3.5 7.2 6.5 20.0 6.5 1.0 8 4.3 100/500/1000
313043 AWG 12~10
2.5~6mm² 		3.5 9.5 6.5 20.0 6.5 1.0 8 4.3 100/500/1000
313053 AWG 12~10
2.5~6mm² 		3.5 9.5 6.5 20.0 6.5 1.0 10 5.3 100/500/1000
313064 AWG 12~10
2.5~6mm² 		3.5 11.0 6.5 22.0 6.5 1.0 1／4 6.4 100/500/1000
313084 AWG 12~10
2.5~6mm² 		3.5 14.0 6.5 27.3 6.5 1.0 5／16 8.4 100/500/1000
313010 AWG 12~10
2.5~6mm² 		3.5 15.0 6.5 28.0 6.5 1.0 3／8 10.0 100/500/1000
313010L AWG 12~10
2.5~6mm² 		3.5 19.0 6.5 32.0 6.5 1.0 3／8 10.0 100/500/1000
313013 AWG 12~10
2.5~6mm² 		3.5 19.0 6.5 32.0 6.5 1.0 1／2 13.0 100/500/1000
