Our Products > Butt Splice Terminals(old)

Butt Splice Connectors Polycarbonated Type
－ View Enlargement －
  • Maximum Electic Rating: 135℃ 300V
    最高溫度: 135℃ 耐壓300V
  • Maximum Electric Current: (最大電流)
    22-16AWG / 0.5-1.5mm²: 19A
    16-14AWG / 1.5-2.5mm²: 27A
    12-10AWG / 4-6mm²: 48A
  • Terminal Body: Copper (端子材質: 紅銅)
  • Insulation: Polycarbonate (護套材質: PC)
  • Plating: Tin(表面處理: 鍍錫)

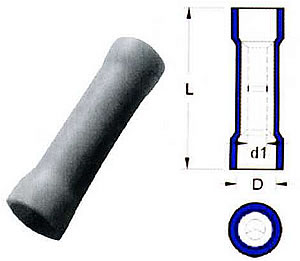

Model No. Insulation Color Wire Range mm2/Awg 适用 Dimension(mm/inch)主要尺寸 Packing 包
L D d1
341032FEMB
Red
0.5-1.5mm2 22-16AWG
 24.5(.964) 4.0(.157) 1.7(.067)
1000
345040FEMB
Blue
1.5-2.5mm2 16-14AWG
 24.5(.964) 4.5(.177) 2.3(.091)
1000
343058FEMB
Yellow
4-6mm2 12-10AWG
 26.0(1.023) 6.3(.248) 3.4(.134)
1000
