Pin Terminals-Non Insulated ( 圓針形裸端)
－ View Enlargement －

1.Maximum Electric Current: (最大電流)
   22-16AWG / 0.5-1.5mm²: 19A
   16-14AWG / 1.5-2.5mm²: 27A
   12-10AWG / 4-6mm²: 48A
2.Terminal Body: Copper (端子材質: 紅銅)
3.Insulation:  (護套材質: )
4.Plating: Tin(表面處理: 鍍錫)

NBT---Non-Insulated butted seam

NB---Non-insulated brazed seam

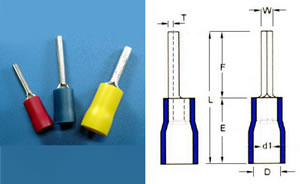

Model No. Insulation Color Wire Range mm2/Awg 适用 Dimension(mm/inch)主要尺寸 Packing 包
331007
Red
0.5-1.5mm2 22-16AWG
1.9(.075)/7.0(0276)/17(.669)/10(.394)/4.0(.157)/1.7(075)/0.75(.030)
1000/500
331007
Red
0.5-1.5mm2 22-16AWG
1.9(.075)/9.0(.354)/19(.748)/10(.394)/4.0(.157)/1.7(075)/0.75(.030)
1000/500
331010
Red
0.5-1.5mm2 22-16AWG
1.9(.075)/10.0(.394)/20(0787)/10(.394)/4.0(.157)/1.7(075)/0.75(.030)
1000/500
331019
Red
0.5-1.5mm2 22-16AWG
1.9(.075)/12.0(.472)/22(.866)/10(.394)/4.0(.157)/1.7(075)/0.75(.030)
1000/500
335007
Blue
1.5-2.5mm2 16-14AWG
1.9(.075)/7.0(0276)/17(.669)/10(.394)/4.5(.177)/2.3(.09)/0.8(.031)
1000/500
335009
Blue
1.5-2.5mm2 16-14AWG
1.9(.075)/9.0(.354)/19(.748)/10(.394)/4.5(.177)/2.3(.09)/0.8(.031)
1000/500
335017
Blue
1.5-2.5mm2 16-14AWG
1.9(.075)/17.0(.669)/27(1.062)/10(.394)/4.5(.177)/2.3(.09)/0.8(.031)
1000/500
335019
Blue
1.5-2.5mm2 16-14AWG
1.9(.075)/12.0(.472)/22(.866)/10(.394)/4.5(.177)/2.3(.09)/0.8(.031)
1000/500
333027
Yellow
4-6mm2 12-10AWG
2.7(.106)/15.0(.591)/28(1.102)/13.0(.512)/6.3(.248)/3.4(.134)/1.0(.039)
1000/500
