Our Products > Wire Accessories & tool

Adapter
－ View Enlargement －

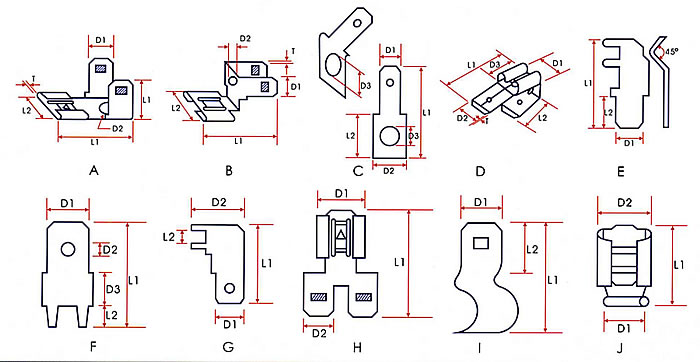

Model No. Fig. Dimension(mm) Tab Size Finish
D1 D2 D3 L1 L2 T AWG mm²
301256
A
 6.3 3.4 - 10.6 6.8 0.8 .250x0.032 6.3x0.8
Brass/Tin
302257
B
 6.3 3.4 - 20.5 6.8 0.8 .250x0.32 6.3x0.8
Brass/Tin
304104
C
 6.4 8.1 4.3 19.3 11.1 0.8 *STRIGHTTYPE
Tin
304004
C
 6.4 8.1 4.3 17.8 10.5 0.8
Tin
305105
C
 6.4 8.1 5.3 19.3 11.1 0.8 *STRIGHTTYPE
Tin
305005
C
 6.4 8.1 5.3 17.8 10.5 0.8
Tin
301638
D
 6.8 6.3 7.9 18.3 8.1 0.8
Brass/Tin
306021
E
 6.3 - 22.7 8.0 0.8
Tin
306017
F
 6.4 2.2 5.0 16.5 3.6 0.8
Tin
306018
F
 6.3 1.7 - 14.0 3.6 0.8
Brass/Tin
306220
G
 6.3 12.7 - 20.0 3.8 0.8
Tin
306066
H
 6.8 6.4 - 20.2 - 0.8 0.250
Brass/Tin
309007
I
 6.2 - 19.2 9.3 0.8 .25x.020 4.8x0.5
Brass
307187
J
 5.6 5.0 - 11.7 - - .187x.020 6.3x0.8
Tin
308250
J
 6.0 6.8 - 13.3 - - .25x.232
Tin
